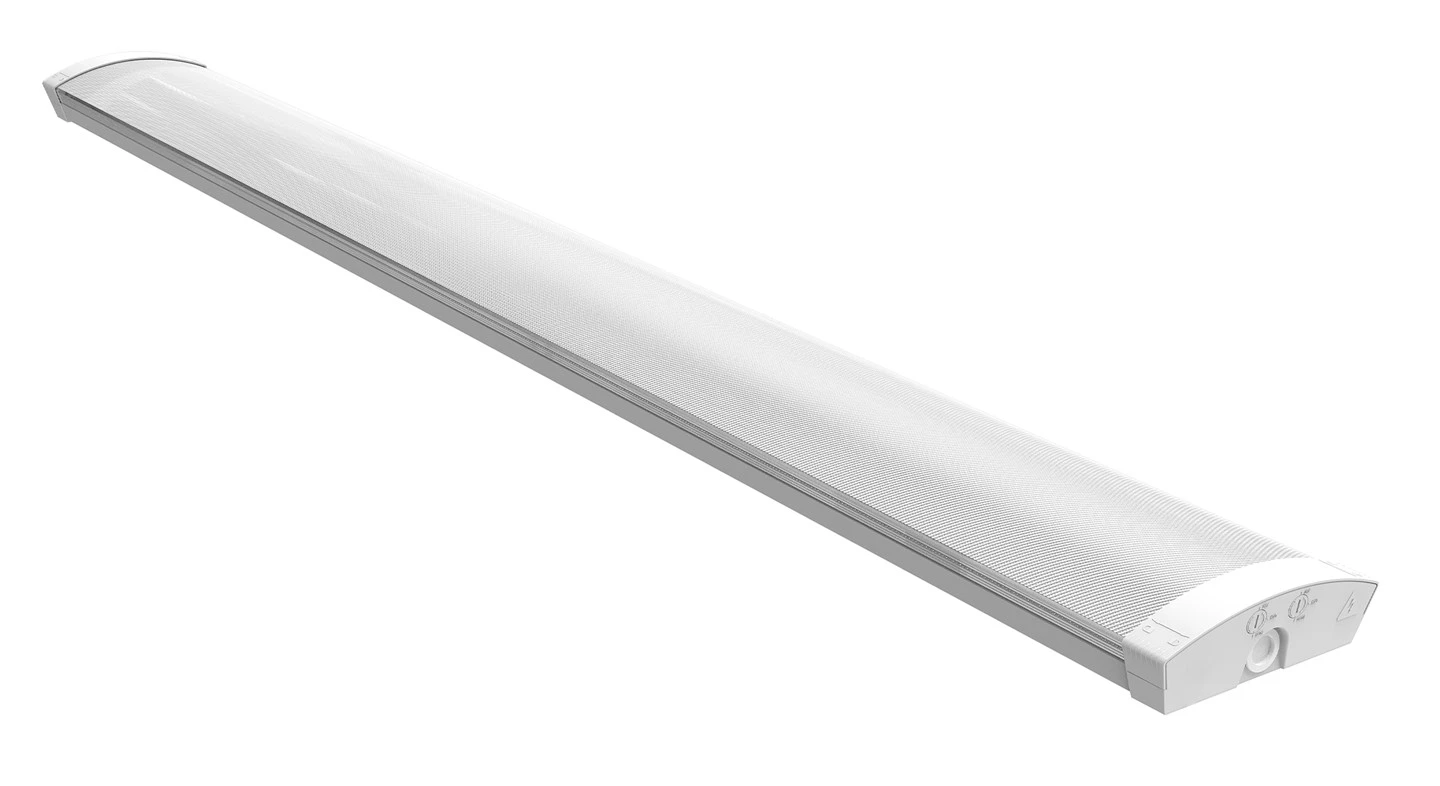

Hilton UGR Batten Teeb

Hilton UGR Batten Light

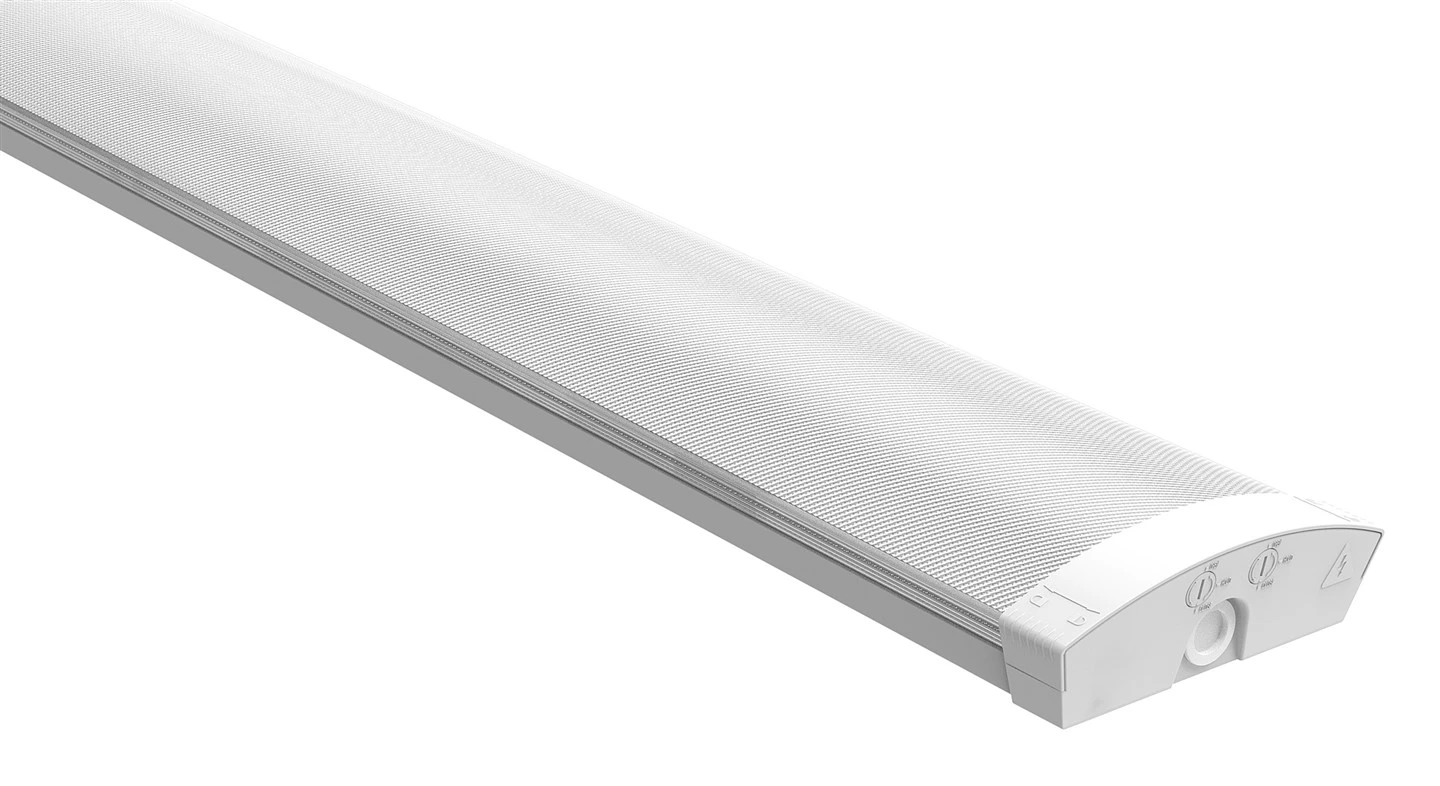

Hilton UGR batten -2

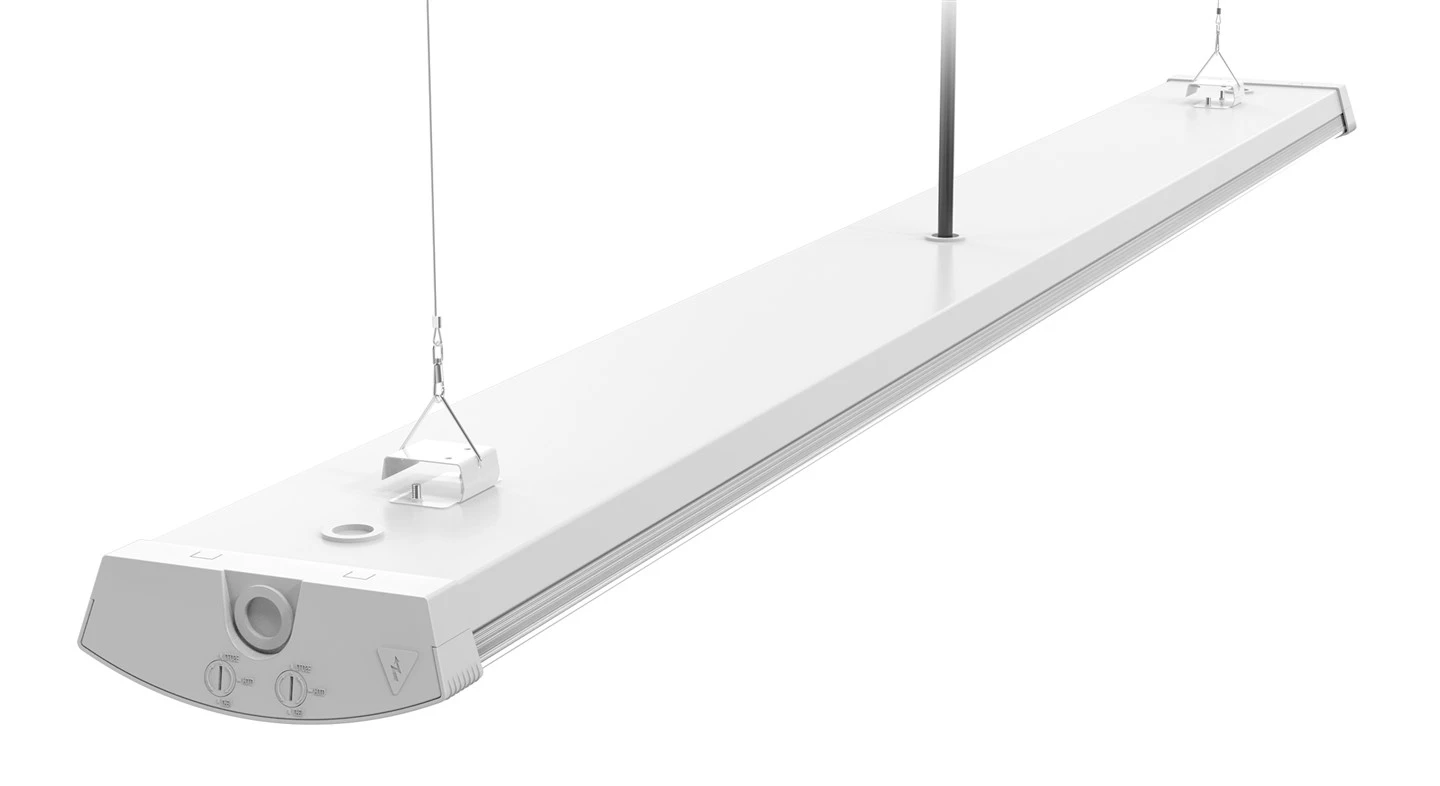

Hilton UGR batten -3

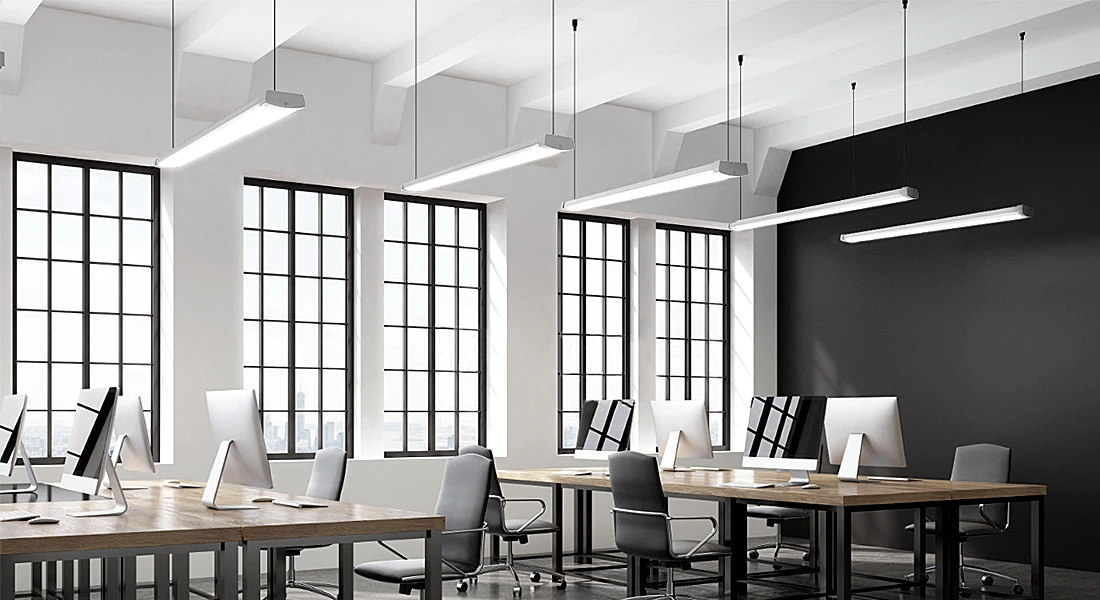

Hilton UGR batten -4

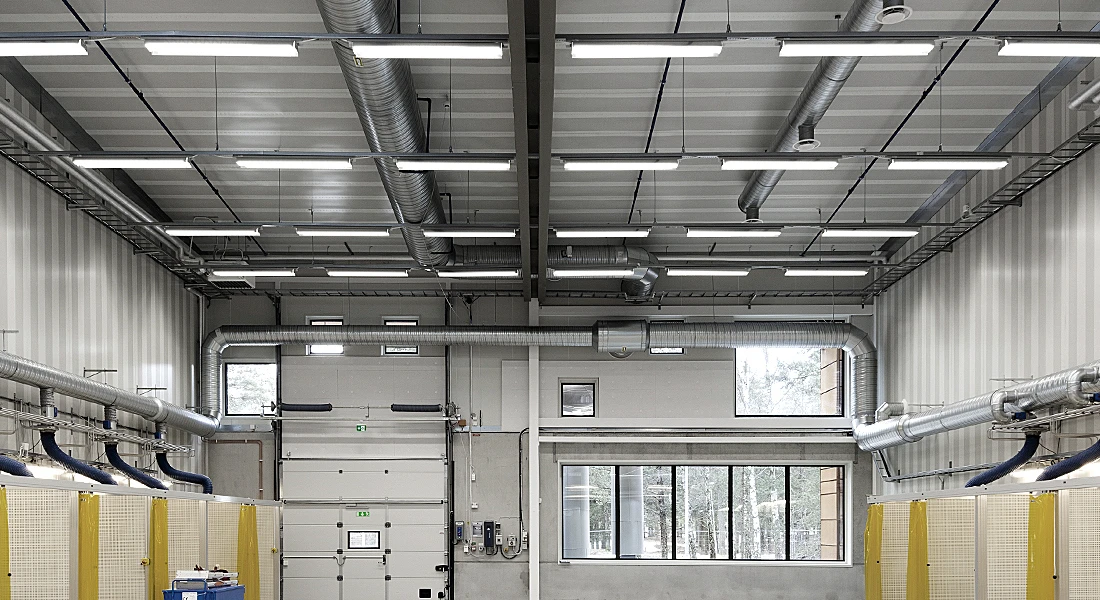

Hilton UGR batten -5

Nqe lus piav qhia:

Hilton batten yog qhov tsim tshiab los siv prismatic PMMA diffuser nrog UGR, Uas ua rau hilton batten nrov nyob rau hauv kev lag luam thiab tsev kawm ntawv daim ntawv thov. Cov rooj plaub steel ua rau hilton batten nqi ntau dua, Watt thiab CCT hloov ntawm tus tsav tsheb raws li tus qauv uas ua rau cov neeg siv khoom yooj yim dua rau kev siv sib txawv.

Nta:

>UGR<19 with prismatic diffuser

>Lub hwj chim thiab CCT hloov ntawm LED tsav tsheb

>Ra80 lossis Ra90, SDCM<3

>Standard lub hauv paus qhov rau xaim input

>Ntau yam kev ua haujlwm sib txawv raws li kev xaiv

>Nto mounting / Ncua kev teeb tsa

>5 xyoo warranty

Send Inquiry

Download

Description

Technical Parameters

QHIA:

Hilton UGR batten teeb pom kev zoo yog tsim los ua lub teeb ci zoo tshaj plaws rau cov chaw ua haujlwm, tsev kawm ntawv, tsev qiv ntawv nrog ntau dua lumen tso tawm tib lub sijhawm muab lub ntsej muag qis nrog prismatic diffuser. Aluminium vaj tse muab ib qho zoo heev tshav kub dissipation. Nws yog ib qho yooj yim rau nruab thiab muaj cov khoom hloov pauv tau rau kev saib xyuas ceev.

Order Code	Dav	Rated zog	LM/W	Lumen	UGR	CRI	SDCM	Watt / CCT Hloov	Khoom Dimension	GW/CTN	QTY/CTN
BT320-04W-DT1-40F01	155 hli	20/40W	ib. 140	ib. 2800/5600	UGR<19	80/90	<3	Y	L1200xW155xH52	9,2kq ua	4pcs ib
BT320-05W-DT1-50F01	155 hli	30/50W	ib. 140	typ.4200/7000	UGR<19	80/90	<3	Y	L1500xW155xH52	11.2 kg ib	4pcs ib

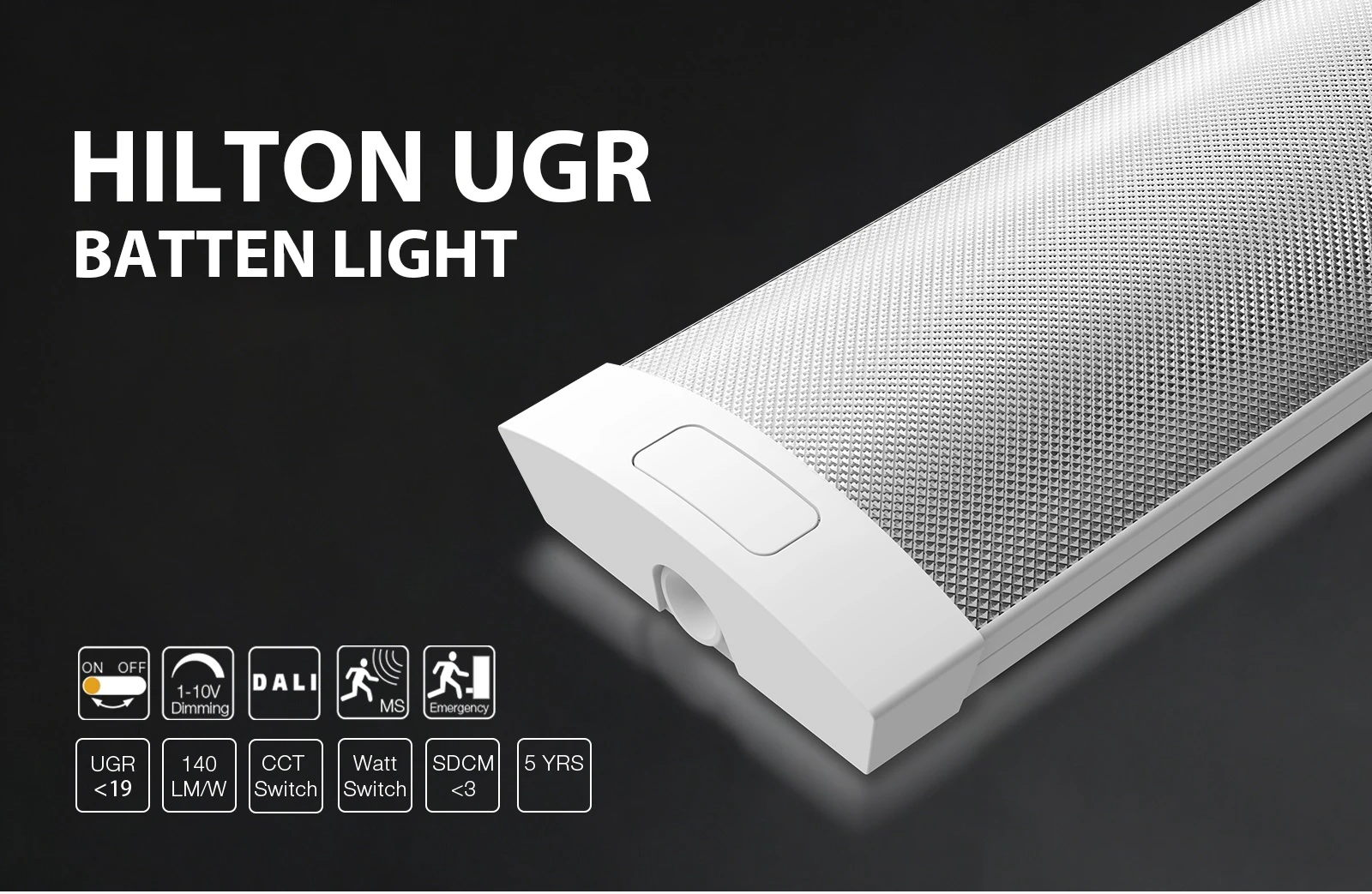

Hilton 01

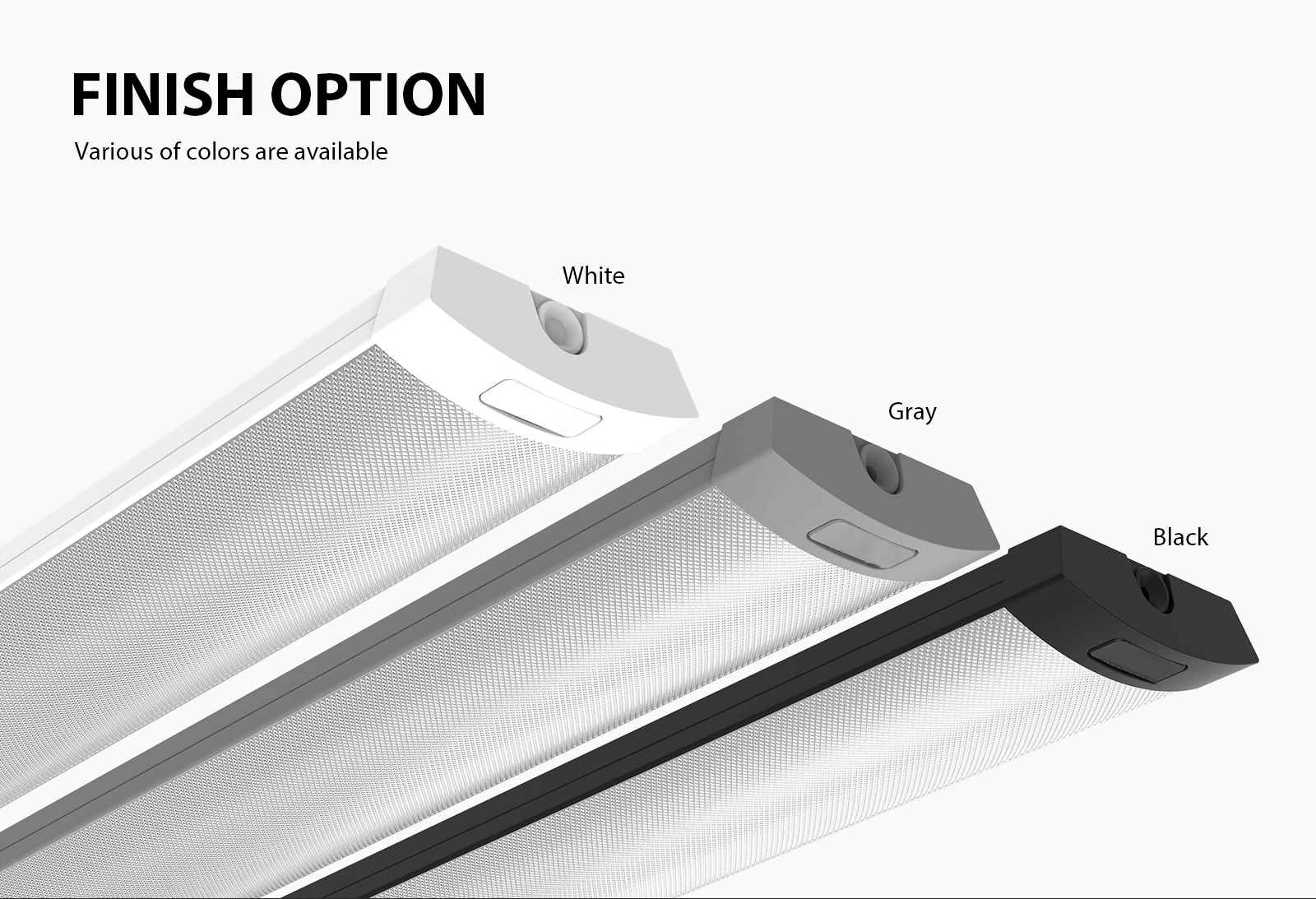

Hilton 02

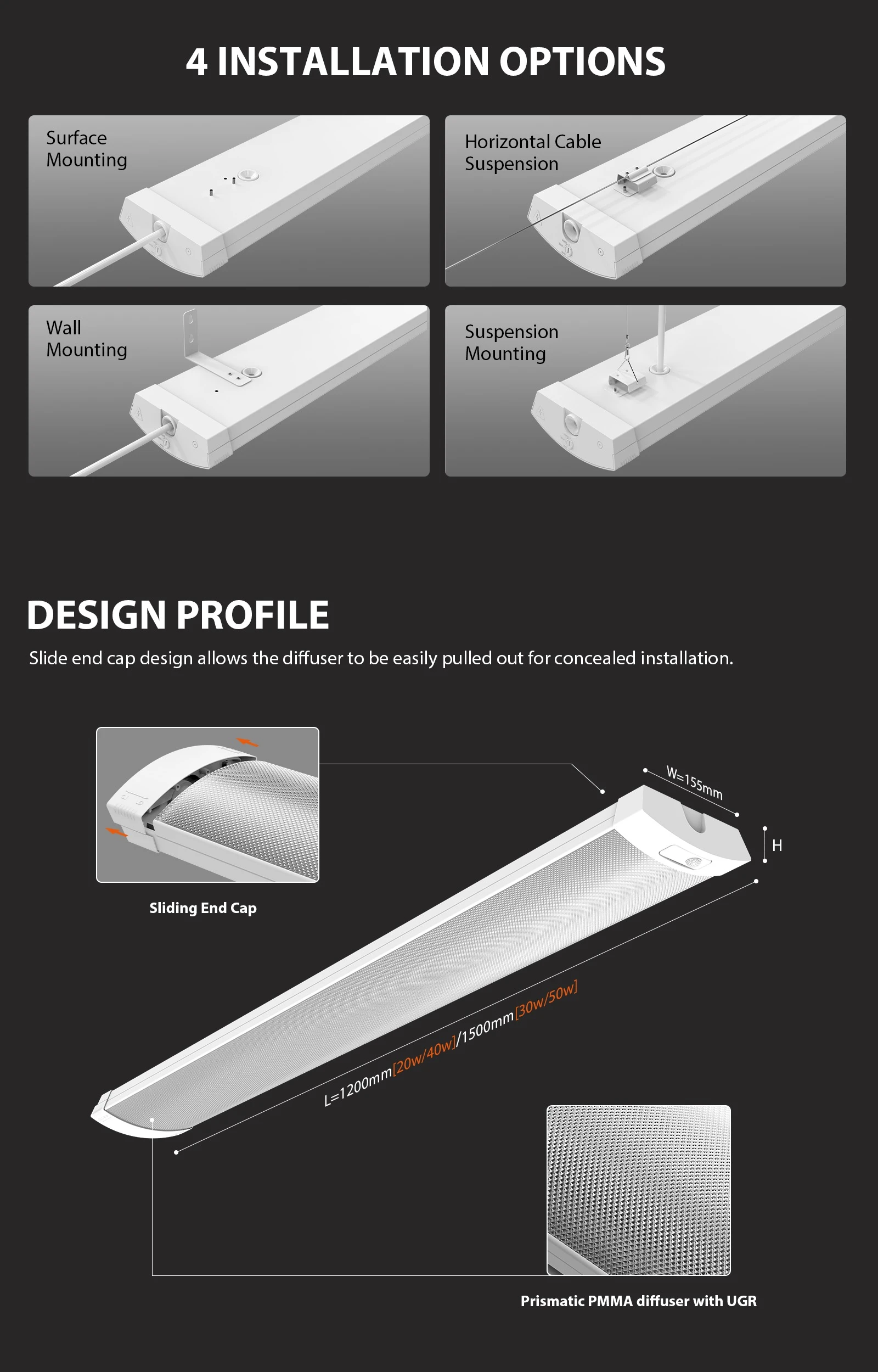

Hilton 03

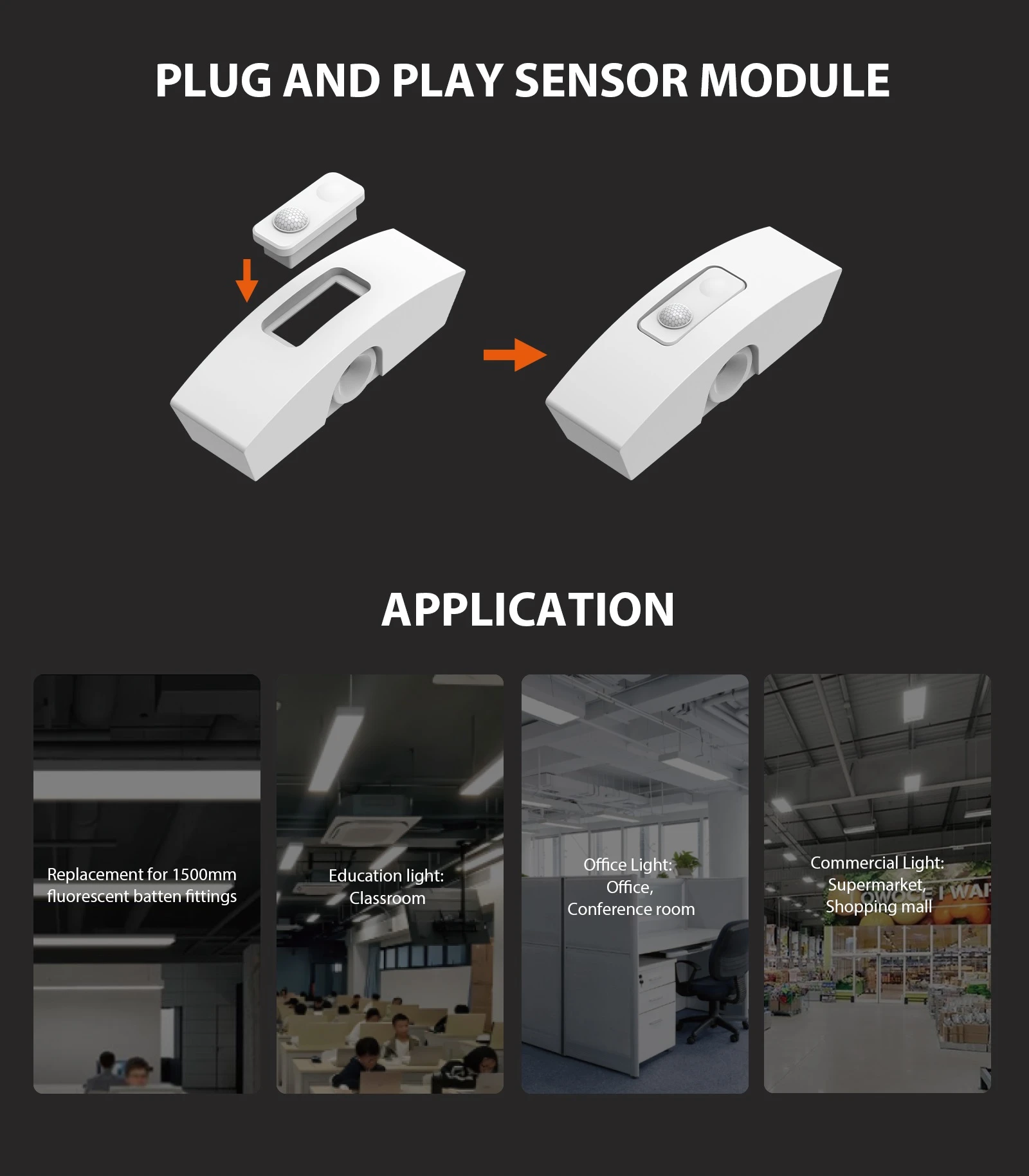

Hilton 04
