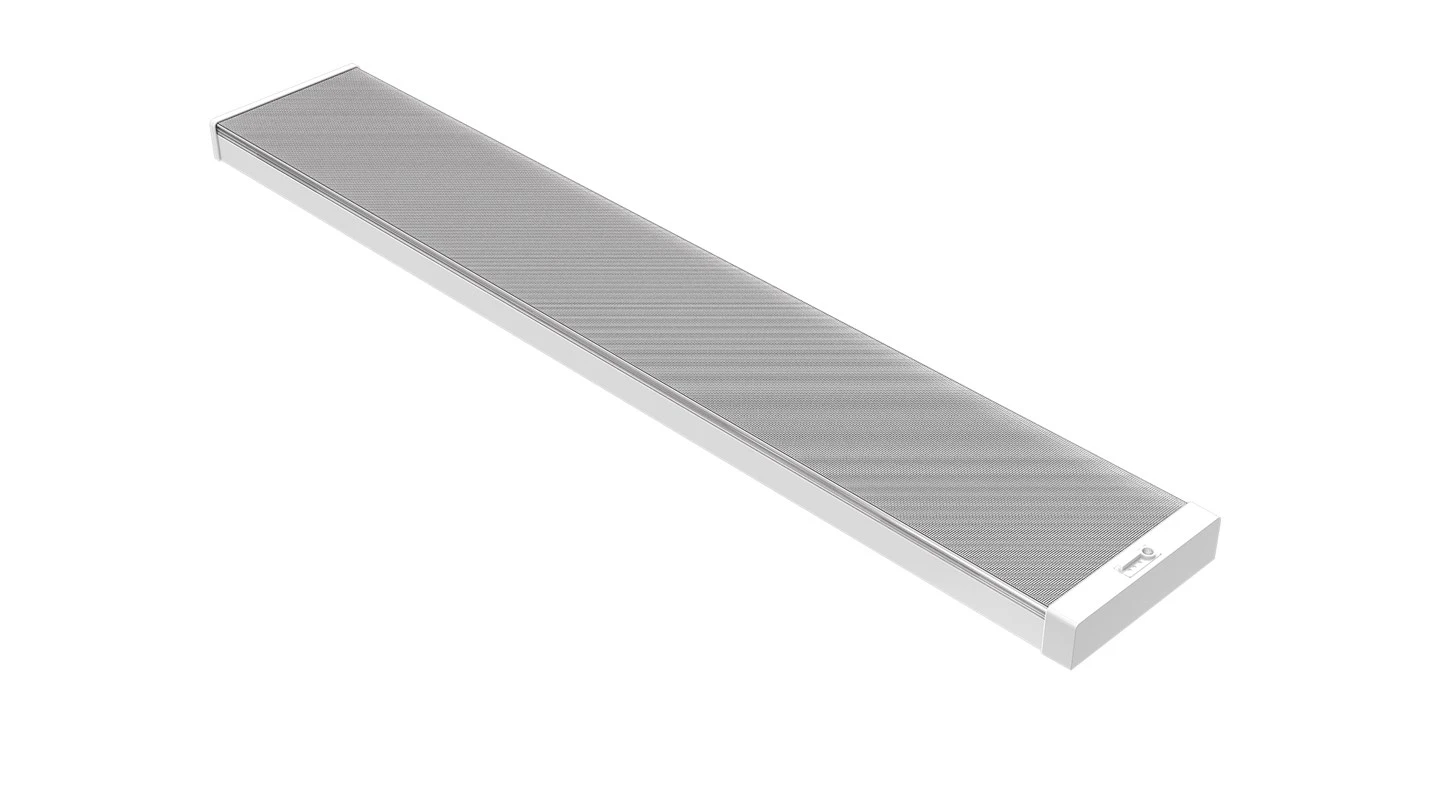

Kaston UGR Batten Light

Kaston batten -4

Kaston batten -5

Kaston batten -3

Nqe lus piav qhia:

Kaston batten teeb pom kev zoo yog ib qho kev hloov pauv rau lub teeb ib txwm muaj. Aluminium vaj tse muab kev tswj xyuas thermal zoo. Opal PS diffuser muab siab pob tshab. Cov tsos mob zoo heev yog tsim rau ntau yam siab -chaw ua haujlwm kawg, tsev so chaw tos txais, chav sib tham, chav kawm.

Nta:

>Elegant tus kheej tsim rau chaw ua haujlwm teeb pom kev zoo.

>Prismatic diffuser nrog UGR<19

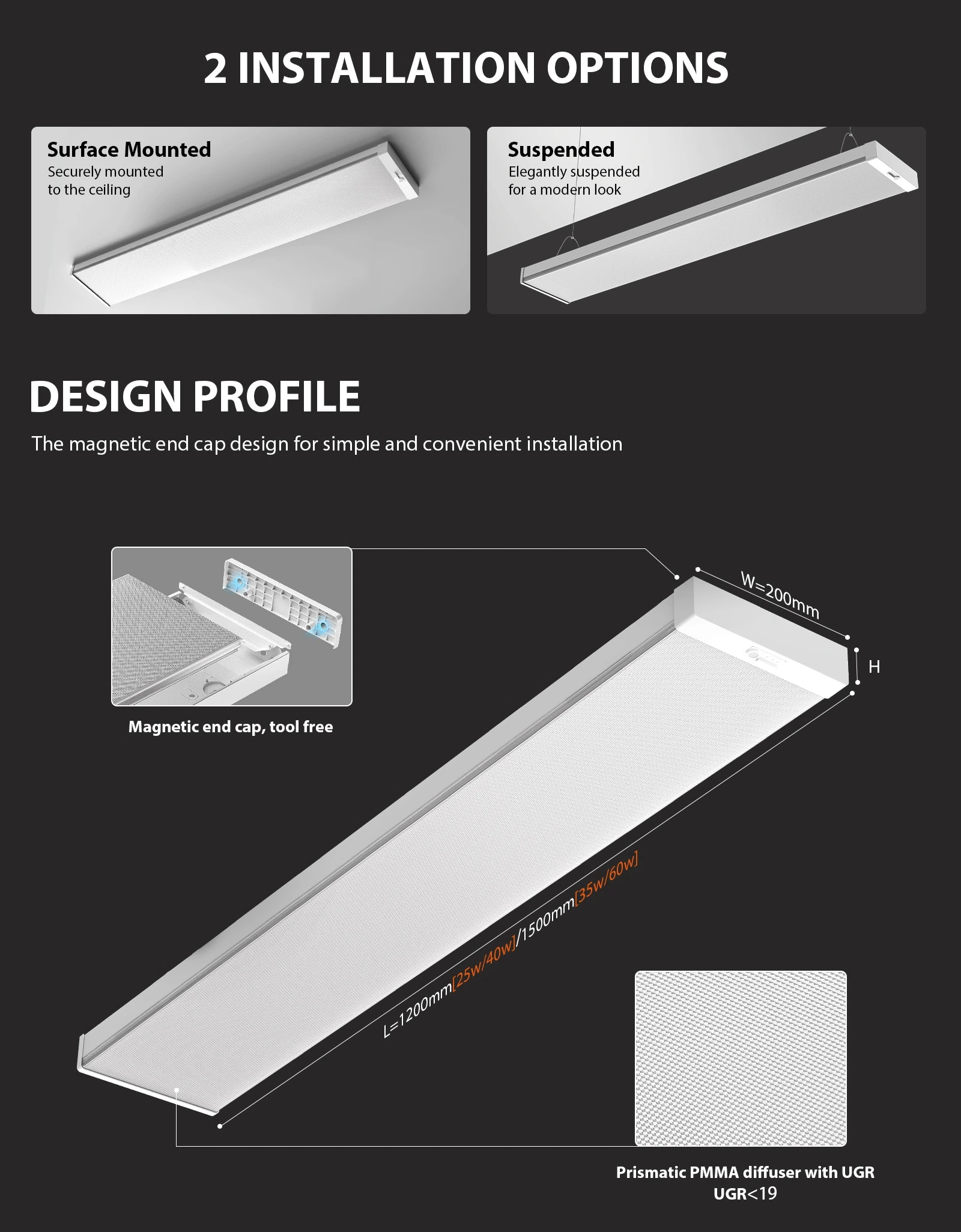

>Ntau Link installation xaiv tau

>Wattage & CCT hloov

>Aluminium vaj tse

Send Inquiry

Download

Description

Technical Parameters

QHIA:Kaston UGR Batten 200MM yog tsim los ua ib qho zoo tshaj plaws coj batten haum rau chaw ua haujlwm, chav sib tham, chav kawm lossis studios. Aluminium vaj tse muab ib qho zoo heev tshav kub dissipation. Prismatic diffuser muab cov neeg siv lub teeb pom kev tsis pom kev. Nws yog ib qho yooj yim rau nruab, nrog ib qhov txuas los yog ntau yam -link xaiv. Nrog rau niaj hnub saib, nws yog qhov nrov tshaj plaws strip teeb fixture.

Order Code	Dav	Rated zog	LM/W	Lumen	UGR	CRI	SDCM	Watt / CCT Hloov	Khoom Dimension	GW/CTN	QTY/CTN
BT600-04W-KT1-40F01-00	1200 hli	20/40W	typ.130-140LM/W	Ib. 2600/5400	UGR<19	Ra 80	<3	Y	L1245xW200xH45	18.5 kg ib	4pcs ib
BT600-05W-KT1-50F01-00	1500 hli	30/50W	typ.130-140LM/W	Ib., 3900/6700	UGR<19	Ra 80	<3	Y	L1545xW200xH45	22.0kg ib	4pcs ib

kaston_01_
kaston_02

kaston_03_

kaston_04
