QHIA:

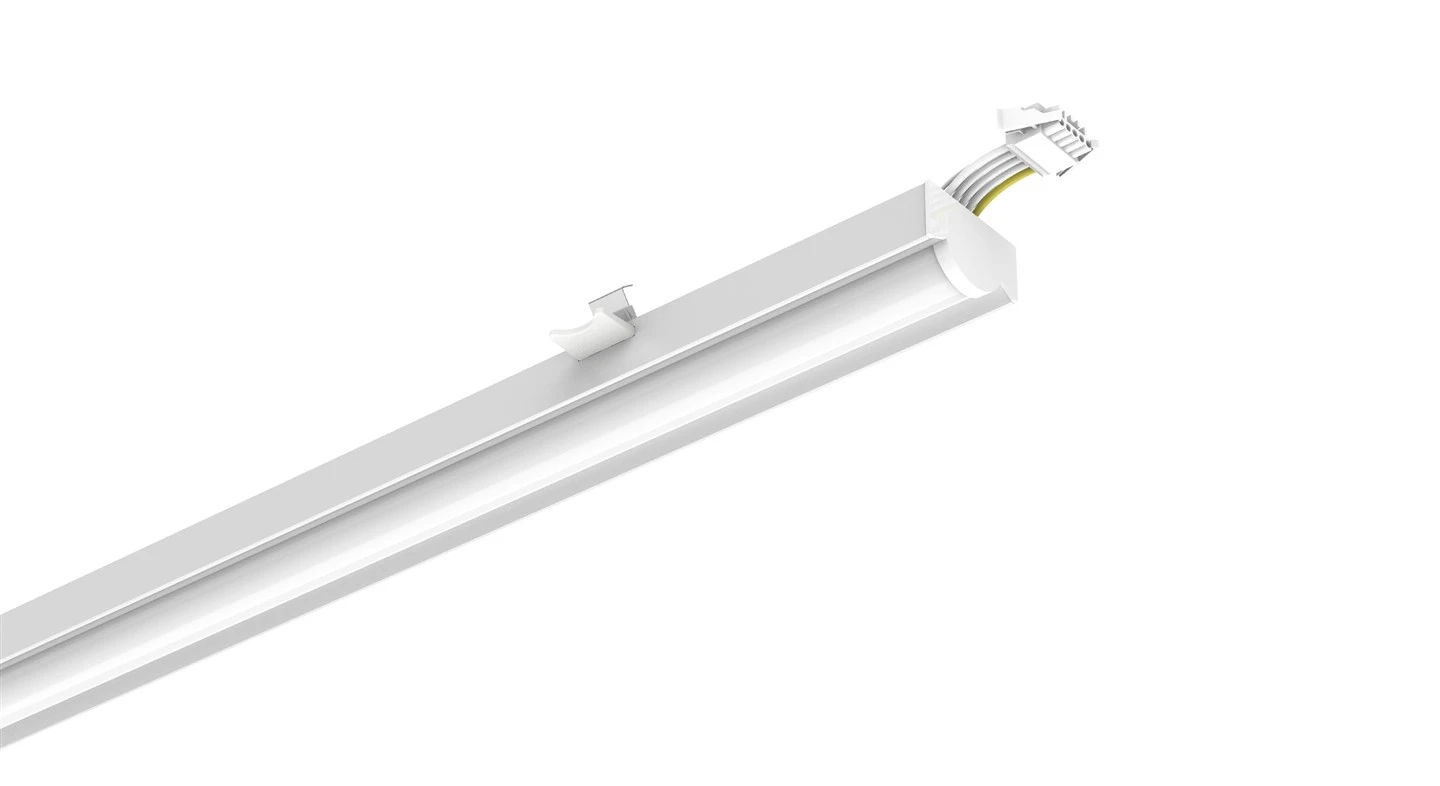

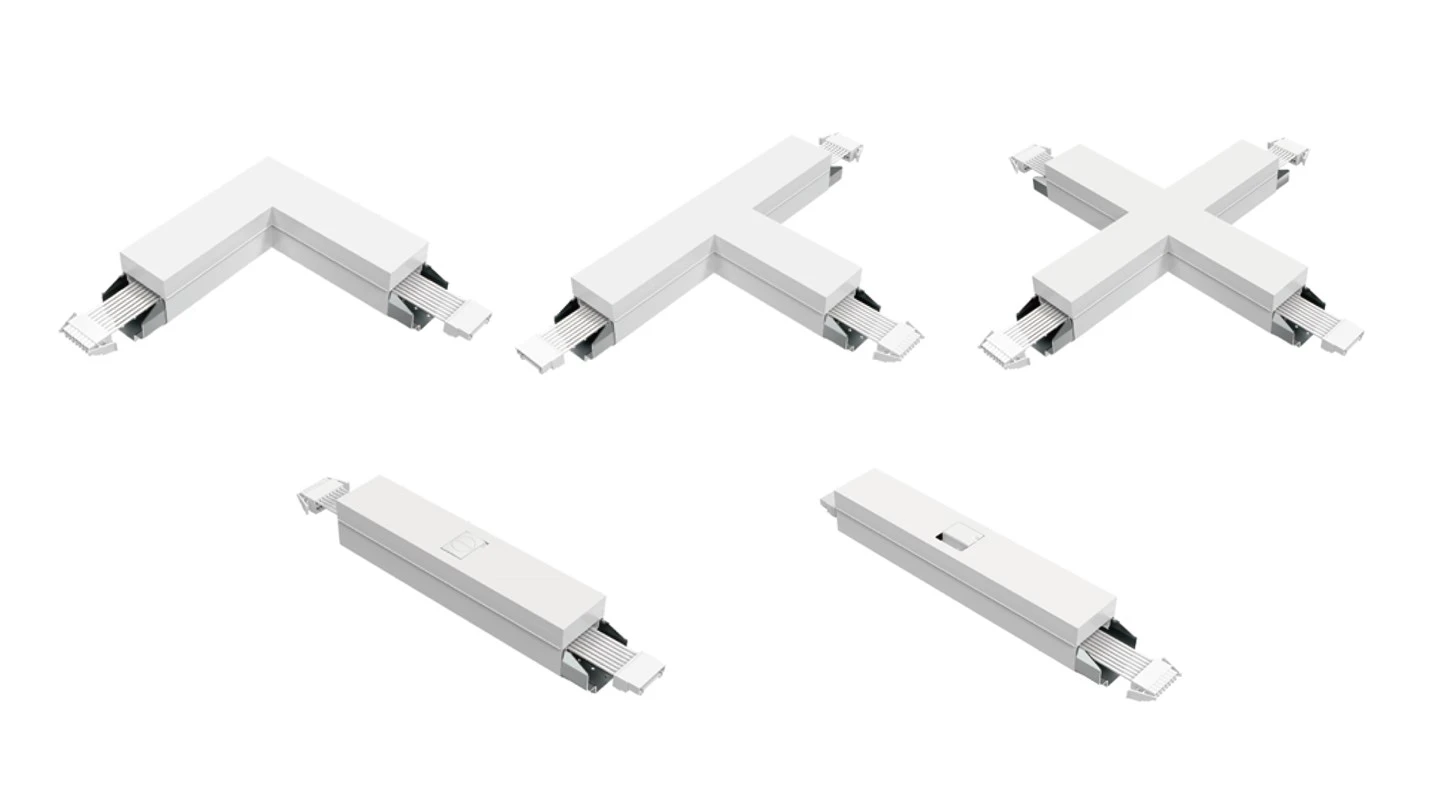

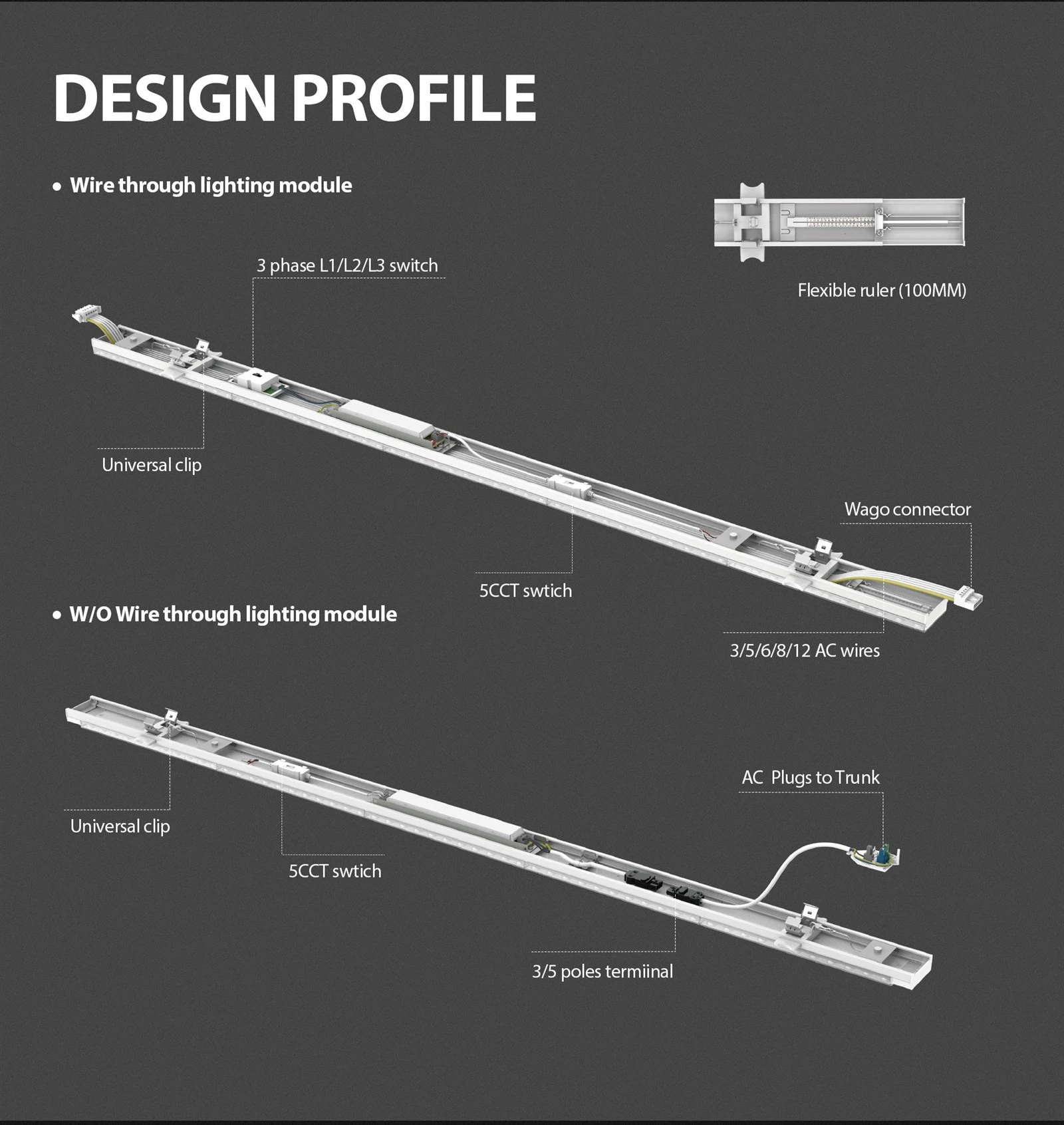

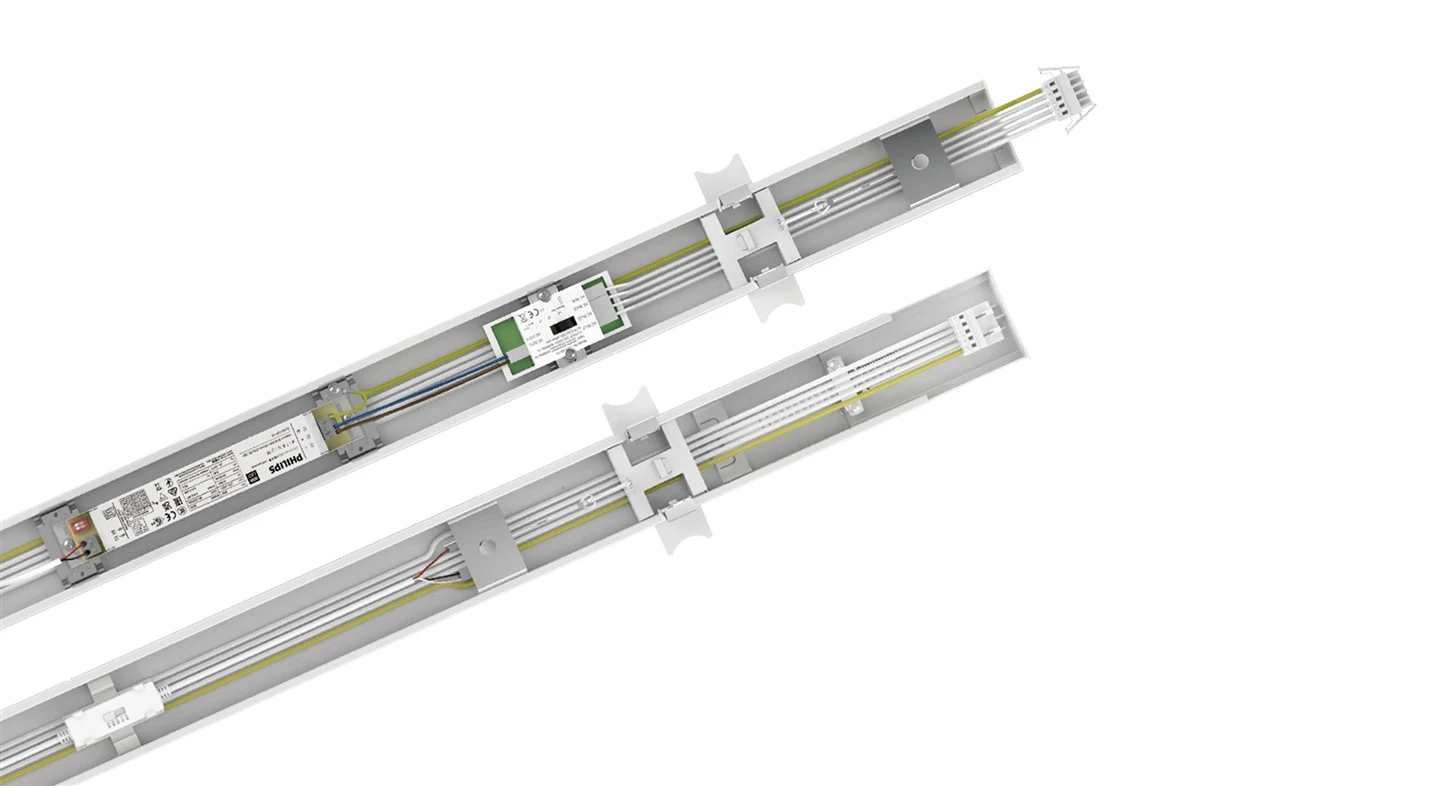

Retro Flex los nrog cov txheej txheem ua ntej -wired txuas txuas, ua rau nws tsis muaj kev ywj pheej ntawm lub caj qaum ntawm lub installation. Lub WAGO kev twb kev txuas davhlau ya nyob twg muab ib tug ceev thiab yooj yim txoj kev mus cuag module tom qab module. Ob lub 5-xaim rau / tawm version nrog rau 7-xaim dimming version feature 3-theem kab hloov nyob rau ntawm 400V los tsim ntau yam kev teeb tsa.
QHOV TSEEB:

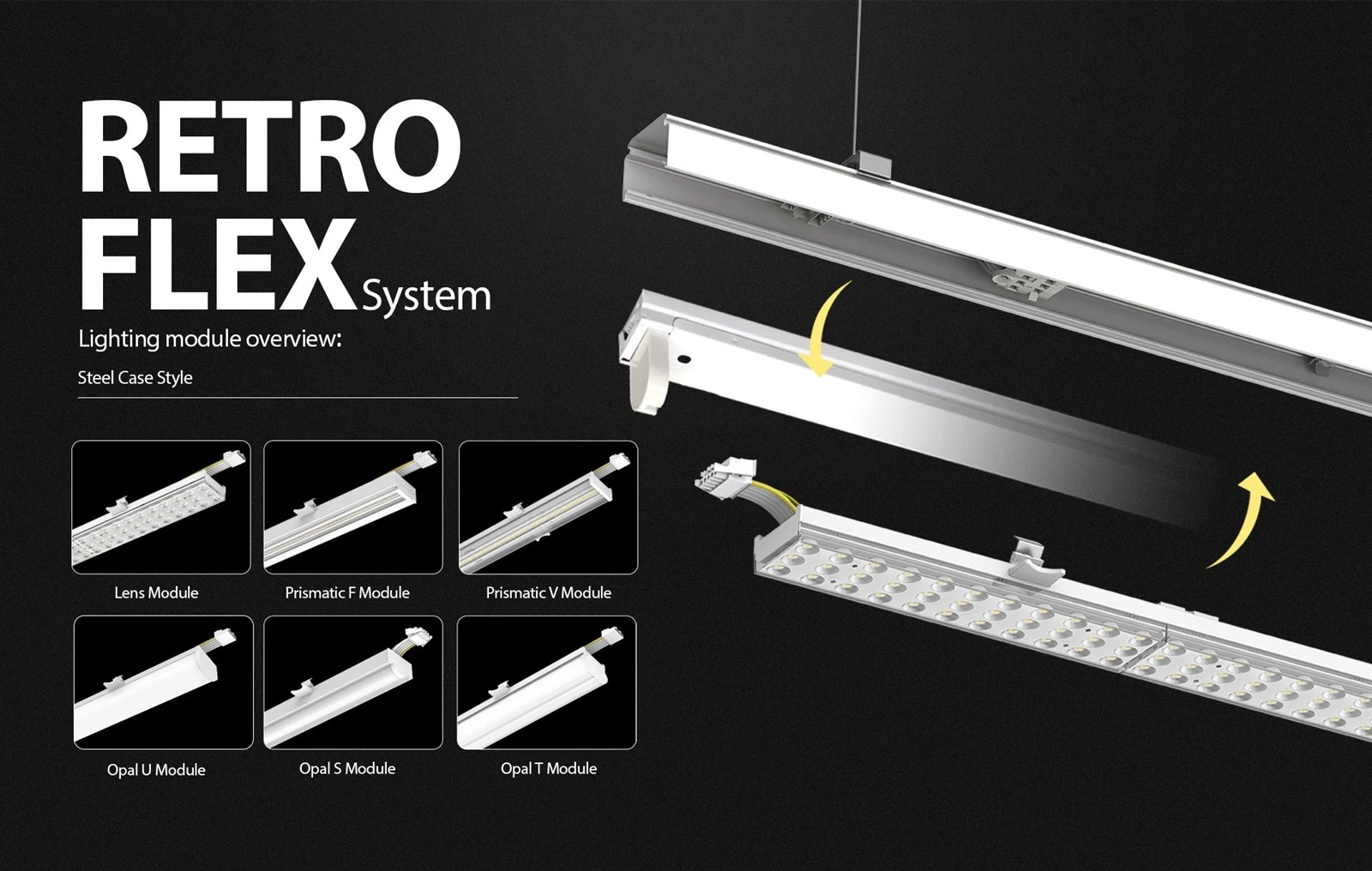

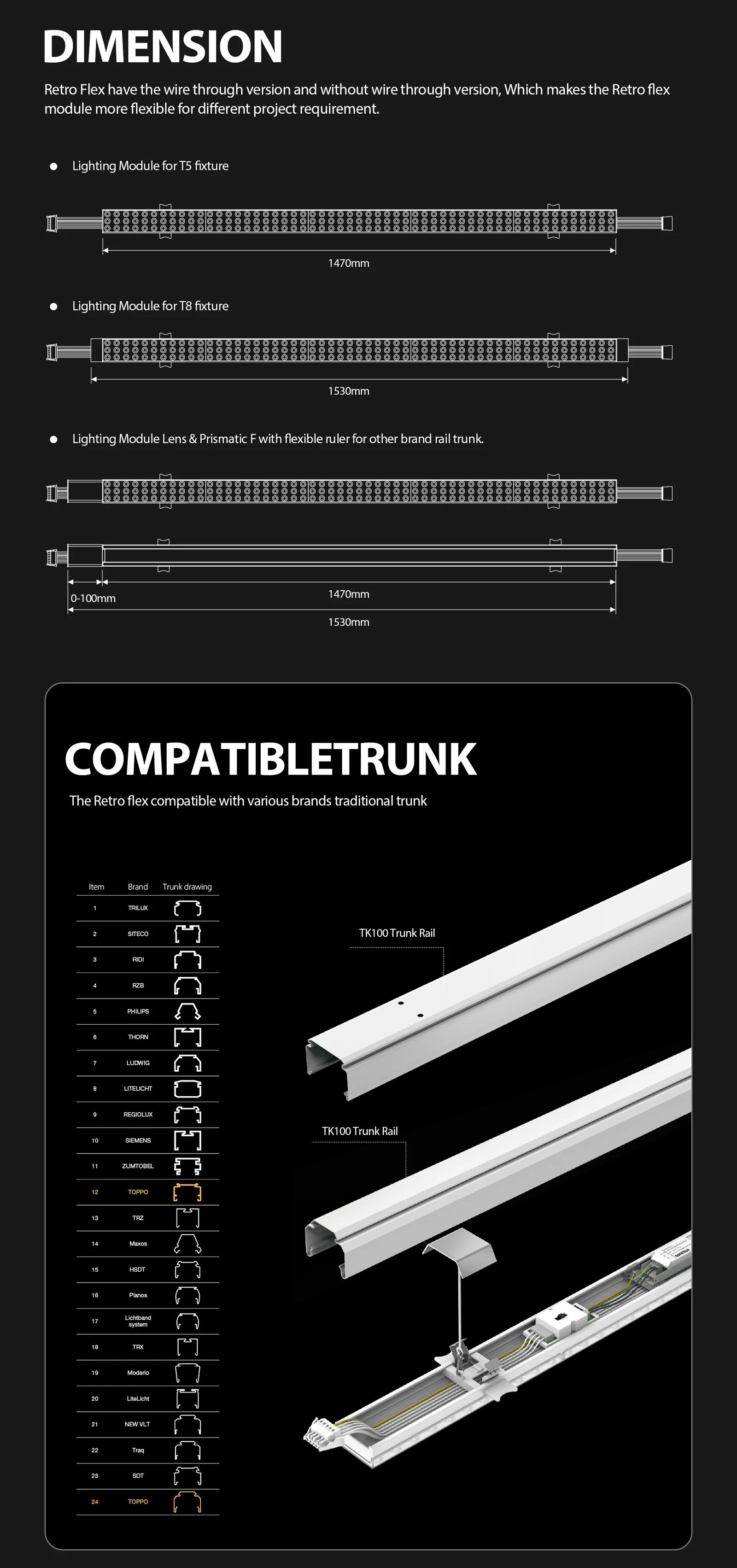

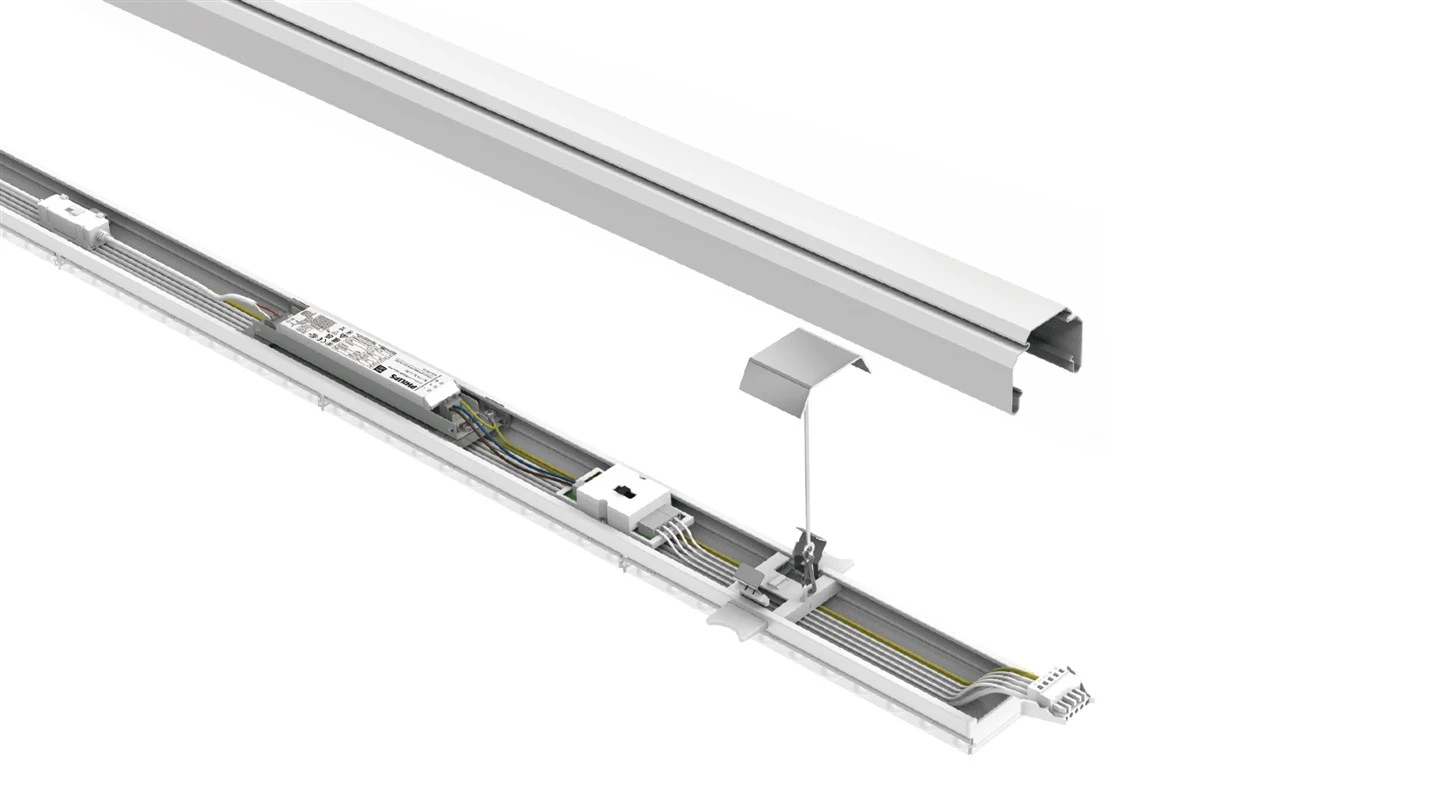

Retro Flex los nrog cov ntse clip ntawm LED module uas tuaj yeem ntsia tau rau hauv cov thawv teeb lub teeb ntawm ntau hom xws li: Philips, Trilux, Zumtobel, Siteco, Ridi thiab ntau ntxiv. Nws hloov tau yooj yim thiab tus kheej -qhov nruab nrab clamping system tso cai rau cov qauv no tau nruab rau ntawm ntau lub thawv teeb.

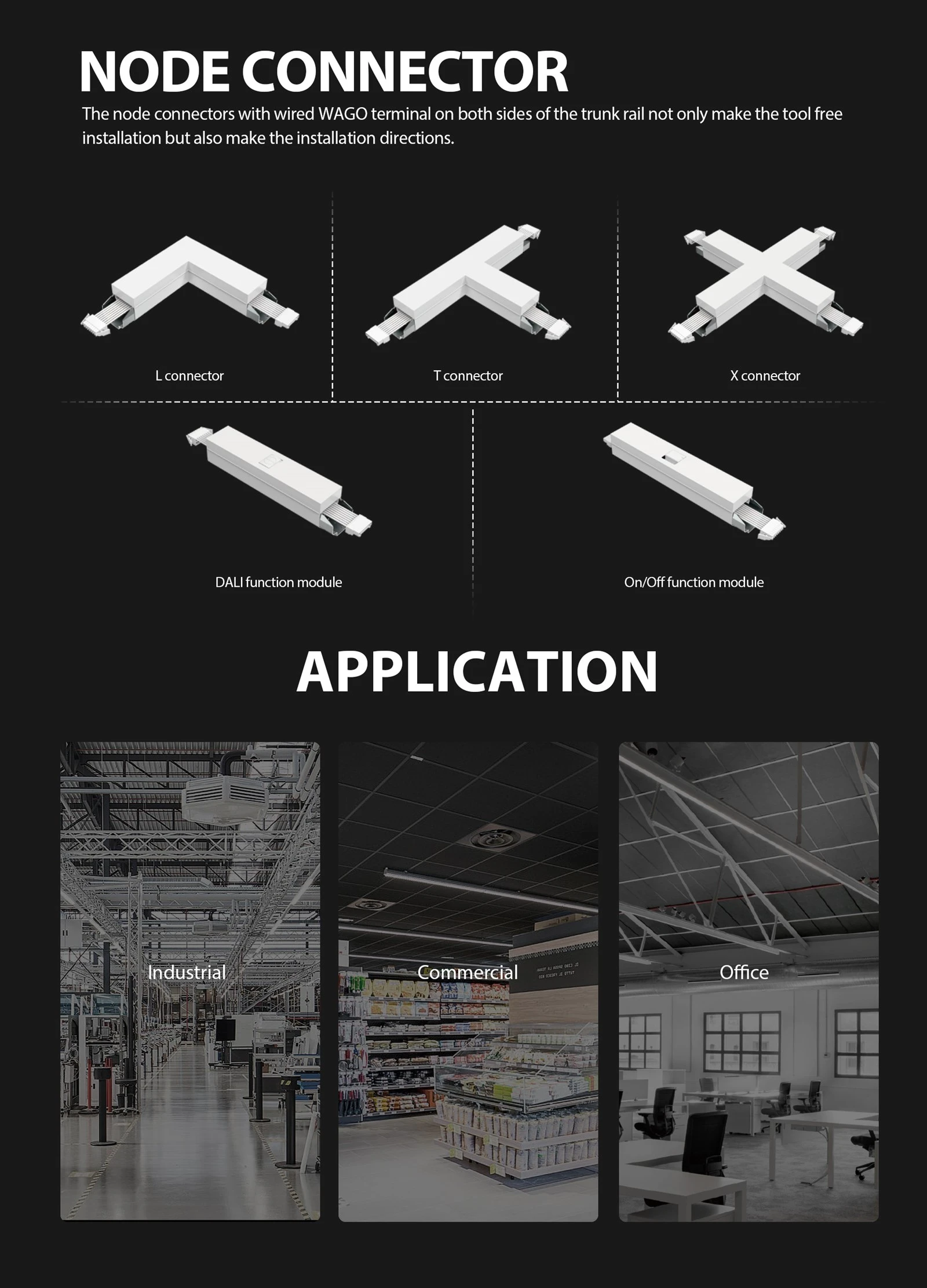

Dab tsi yog qhov txawv ntawm linear fluorescent thiab LED teeb? Retro Flex los nrog nws tus kheej cov txheej txheem ua ntej -wired kev sib txuas ntawm cov xov hlau, ua rau nws ywj siab ntawm lub cev nws tau nruab rau hauv. Lub WAGO kev twb kev txuas davhlau ya nyob twg muab txoj hauv kev yooj yim thiab yooj yim los txuas ib qho module mus rau lwm qhov.
|

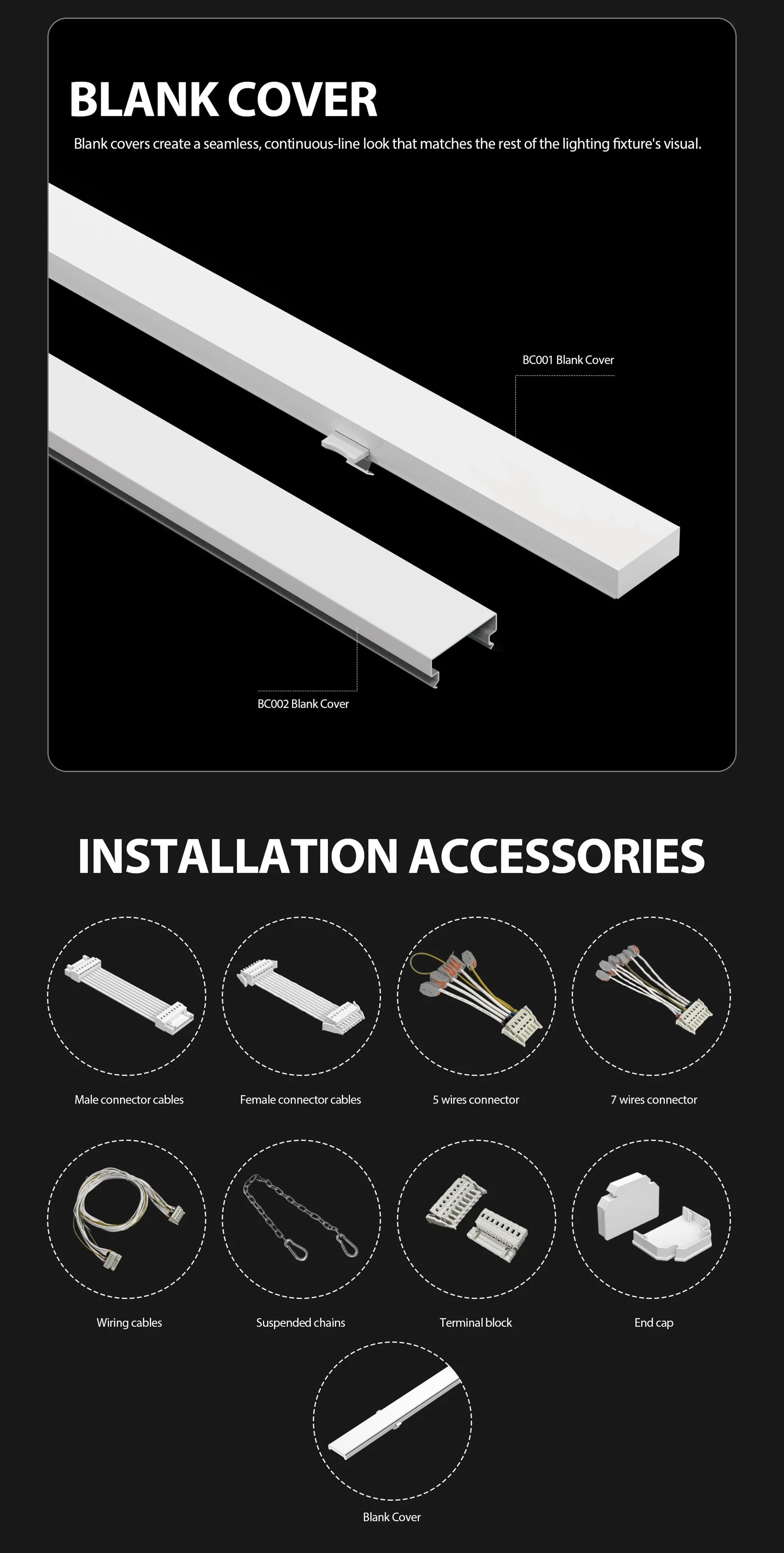

Npog |
Order Code |
Rated zog |
LM/W |
Lumen |
SDCM/Ra |
IP Chav Kawm |
Khoom Dimension |
GW/CTN |
QTY/CTN |
|

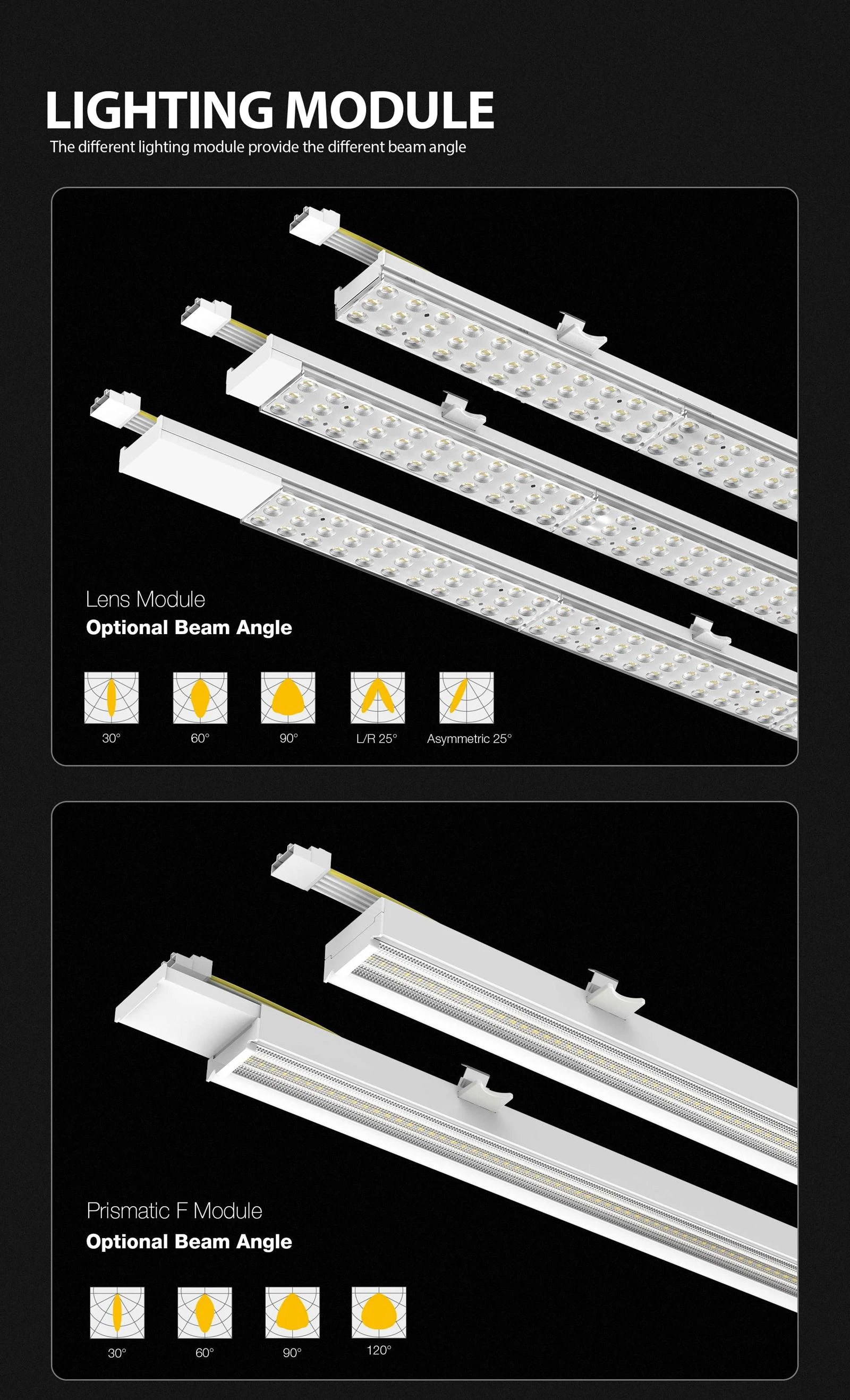

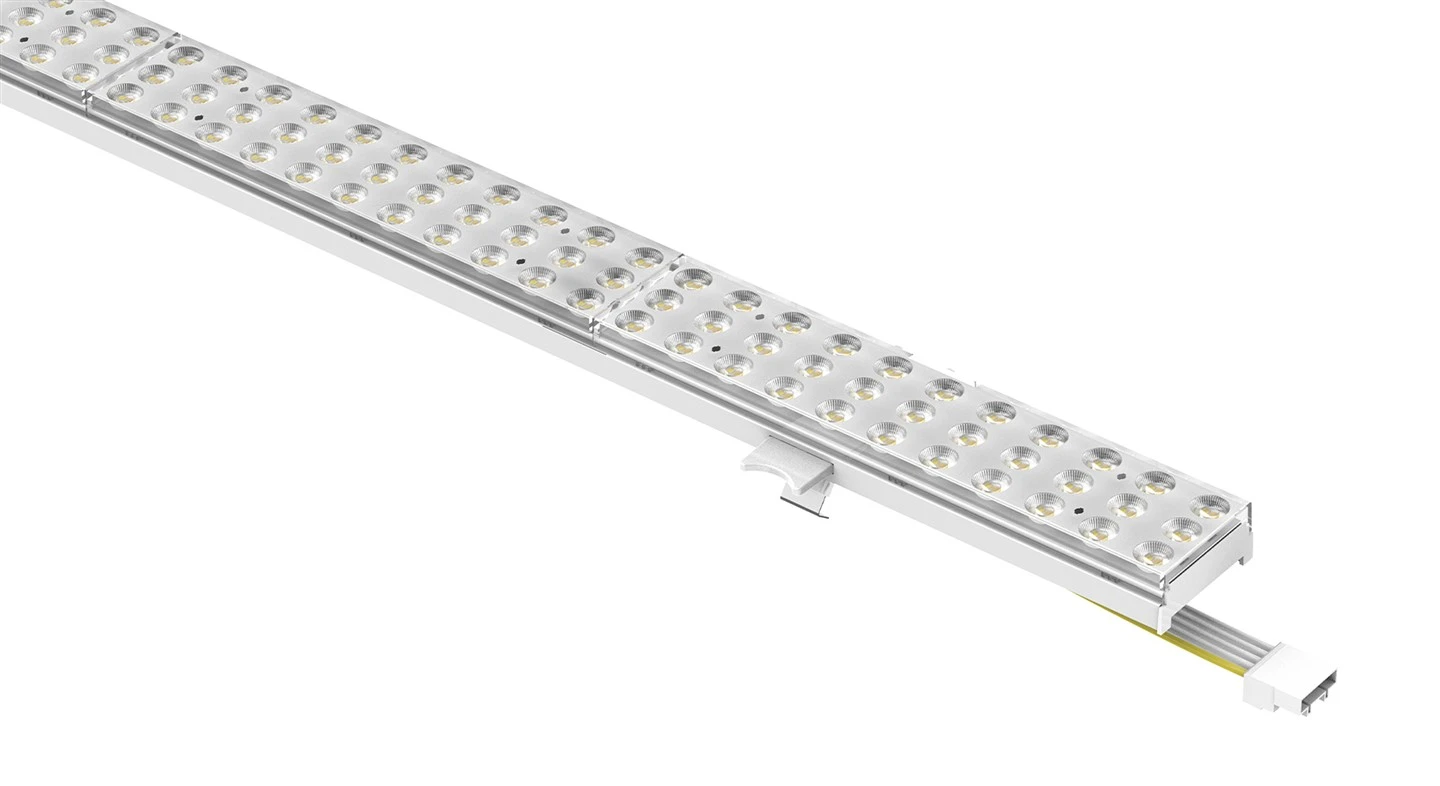

Lub lens optic |
RF100-05W-DT1-75F01 |
20-75W |
Typ.180 |
Typ. 4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14.5 kg ib |
6 pcs |
|
Lub lens optic |
RF100-05W-DT1-60F01 |
40-60W |
Typ.180 |
Ib. 7200-10800 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14.5 kg ib |
6 pcs |
|
Lub lens optic |
RF100-05W-DT1-70V01 |
50-70W |
Typ.180 |
Ib., 9000-12600 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14.5 kg ib |
6 pcs |
|
Lub lens optic |
RF100-05W-DT1-75D01 |
20-75W |
Typ.180 |
Typ. 4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14.5 kg ib |
6 pcs |
|
Lub lens optic |
RF100-05W-DT1-70D01 |
35-70W |
Typ.180 |
Ib. 6300-12600 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14.5 kg ib |
6 pcs |
|
Lub lens optic |
RF100-05W-DT1-75F01 |
35-75W |
Typ.180 |
Ib. 6300-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14.5 kg ib |
6 pcs |
|

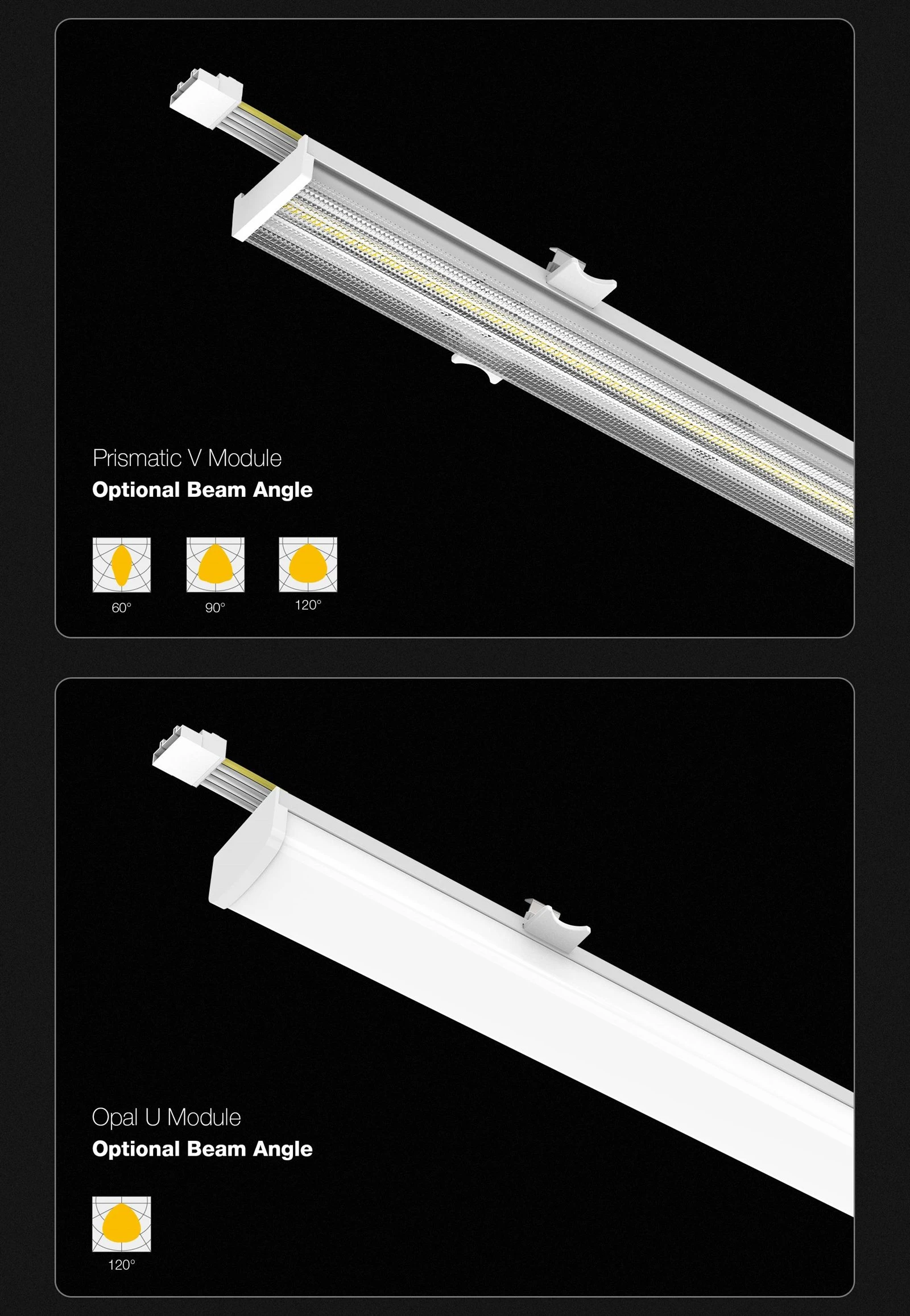

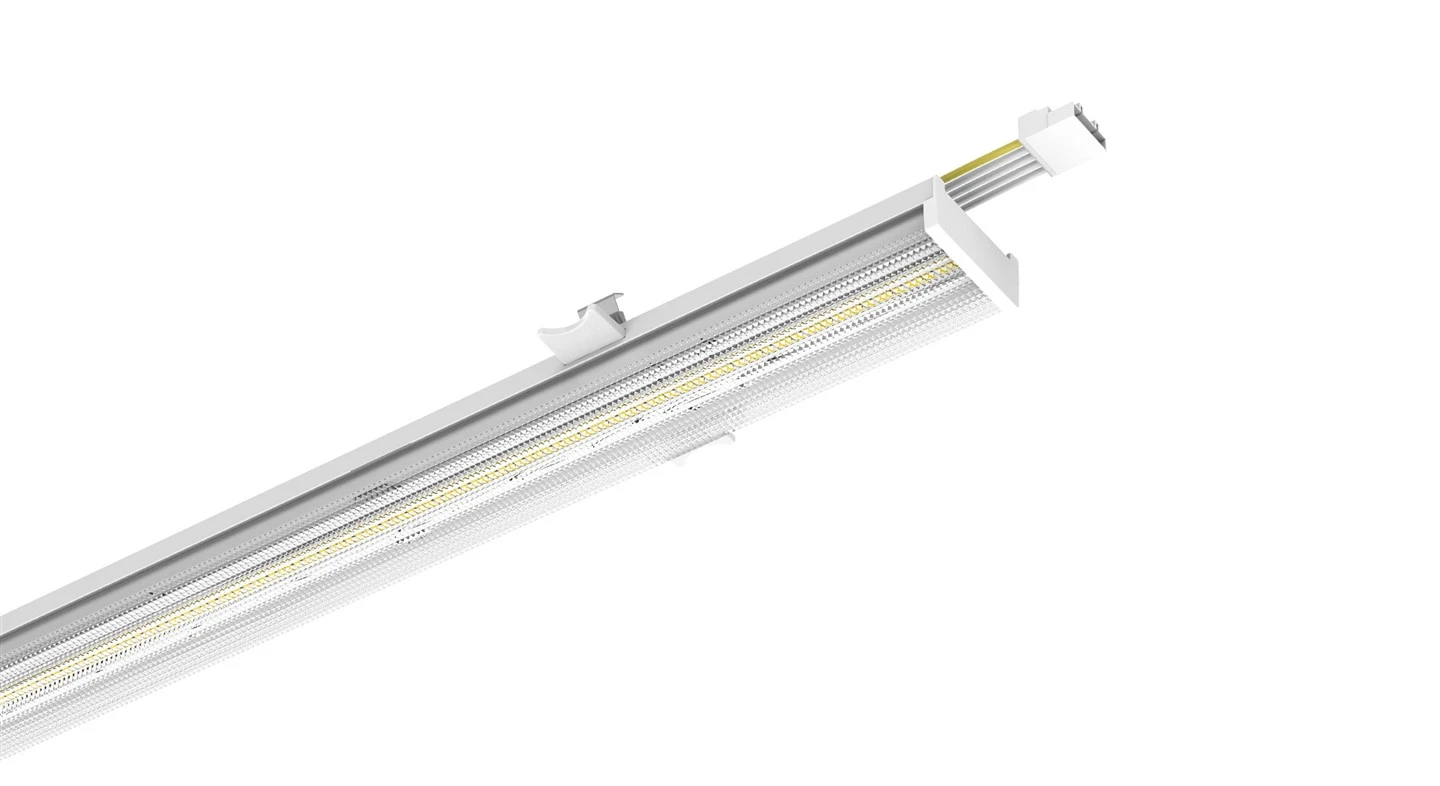

Prismatic optic F |
RF130-05W-DT1-75F01 |
20-75W |
Typ.180 |
Typ. 4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH39 |
14.5 kg ib |
6 pcs |
|
Prismatic optic F |
RF130-05W-DT1-60F01 |
40-60W |
Typ.180 |
Ib. 7200-10800 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH39 |
14.5 kg ib |
6 pcs |
|
Prismatic optic F |
RF130-05W-DT1-75D01 |
20-75W |
Typ.180 |
Typ. 4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH39 |
14.5 kg ib |
6 pcs |
|
Prismatic optic F |
RF130-05W-DT1-70D01 |
35-70W |
Typ.180 |
Ib. 6300-12600 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH39 |
14.5 kg ib |
6 pcs |
|
Prismatic optic F |
RF130-05W-DT1-75F01 |
35-75W |
Typ.180 |
Ib. 6300-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH39 |
14.5 kg ib |
6 pcs |
|

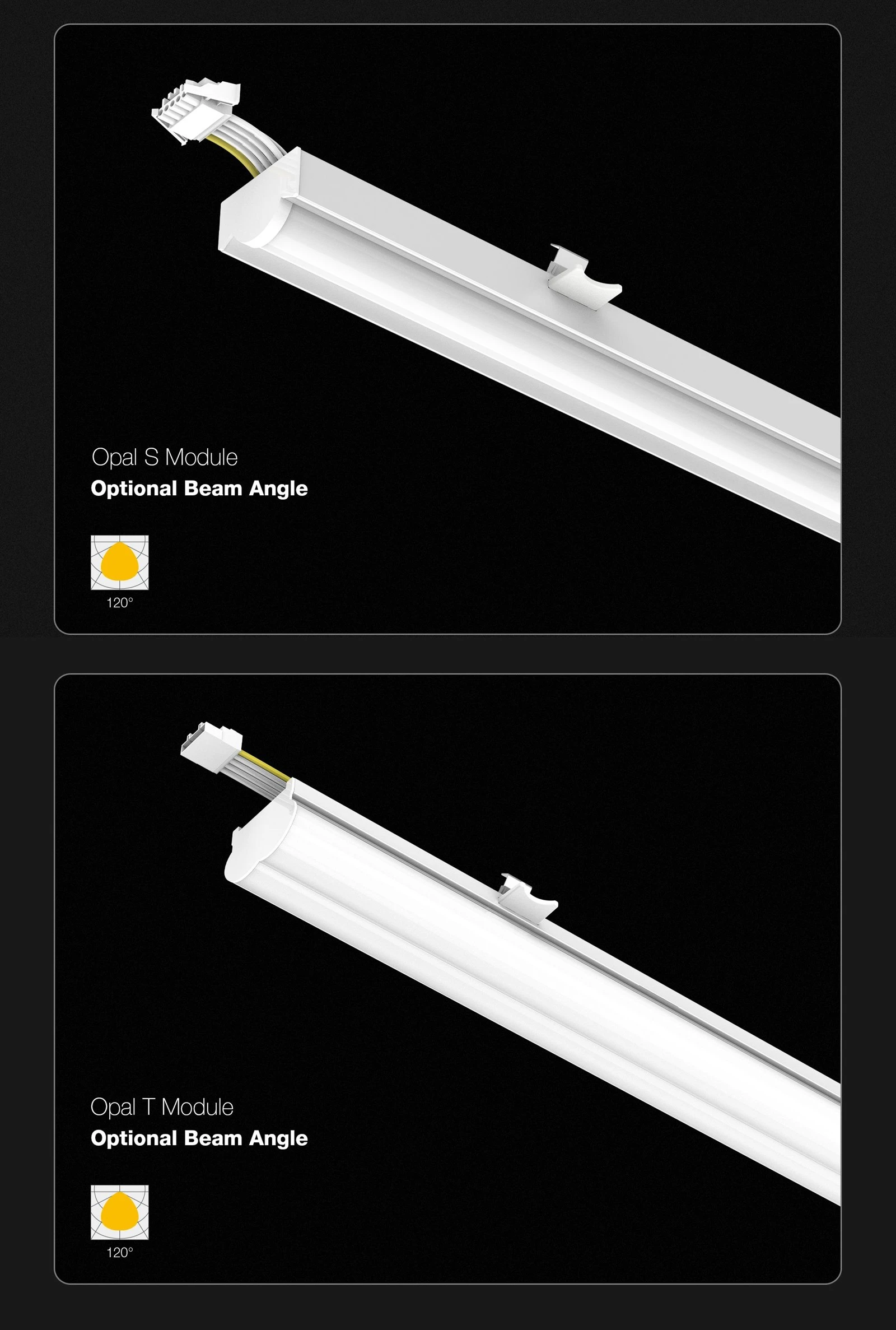

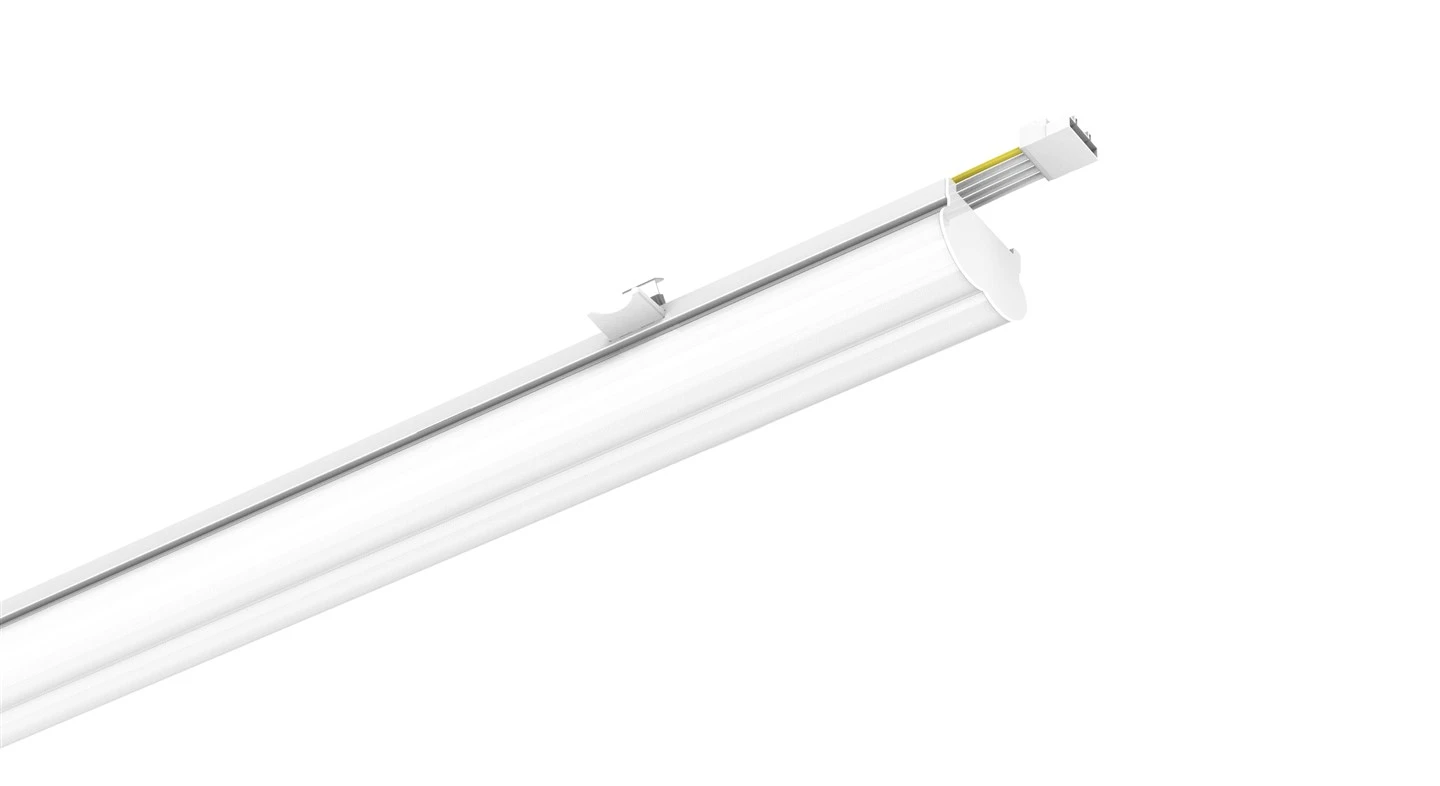

Opal T8 |
RF160-05W-DT1-75F01 |
20-75W |
Typ.180 |
Typ. 4500-13500 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14.5 kg ib |
6 pcs |
|
Opal T8 |
RF160-05W-DT1-60F01 |
40-60W |
Typ.180 |
Ib. 7200-10800 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14.5 kg ib |
6 pcs |
|
Opal T8 |
RF160-05W-DT1-70V01 |
50-70W |
Typ.180 |
Ib., 9000-12600 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14.5 kg ib |
6 pcs |
|
Opal T8 |
RF160-05W-DT1-75D01 |
20-75W |
Typ.180 |
Typ. 4500-13500 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14.5 kg ib |
6 pcs |
|
Opal T8 |
RF160-05W-DT1-70D01 |
35-70W |
Typ.180 |
Ib. 6300-12600 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14.5 kg ib |
6 pcs |
|
Opal T8 |
RF160-05W-DT1-75F01 |
35-75W |
Typ.180 |
Ib. 6300-13500 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14.5 kg ib |
6 pcs |
