QHIA:

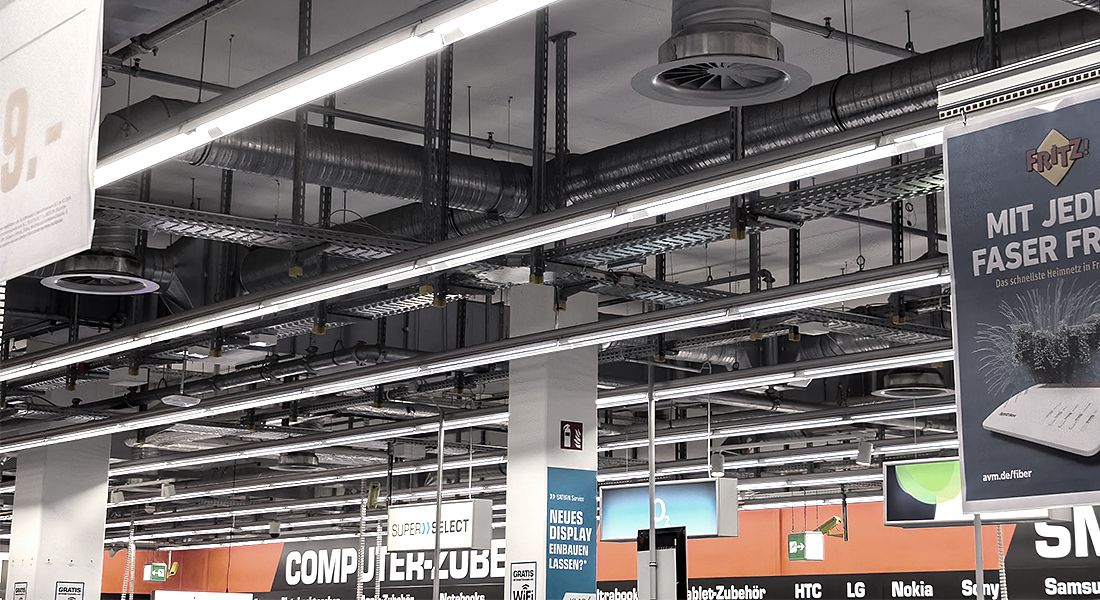

Lub Trunk Flex system yog tus kheej -tsim ntau- txuas LED linear teeb pom kev zoo uas muab cov teeb pom kev zoo rau kev lag luam thiab kev lag luam, xws li: tsev loj, khw khw, chaw ua haujlwm, chav sib tham, chaw tsim khoom, tsev khaws khoom, chaw nres tsheb, tshav dav hlau, chaw nres tsheb, thiab lwm yam.
QHOV TSEEB:

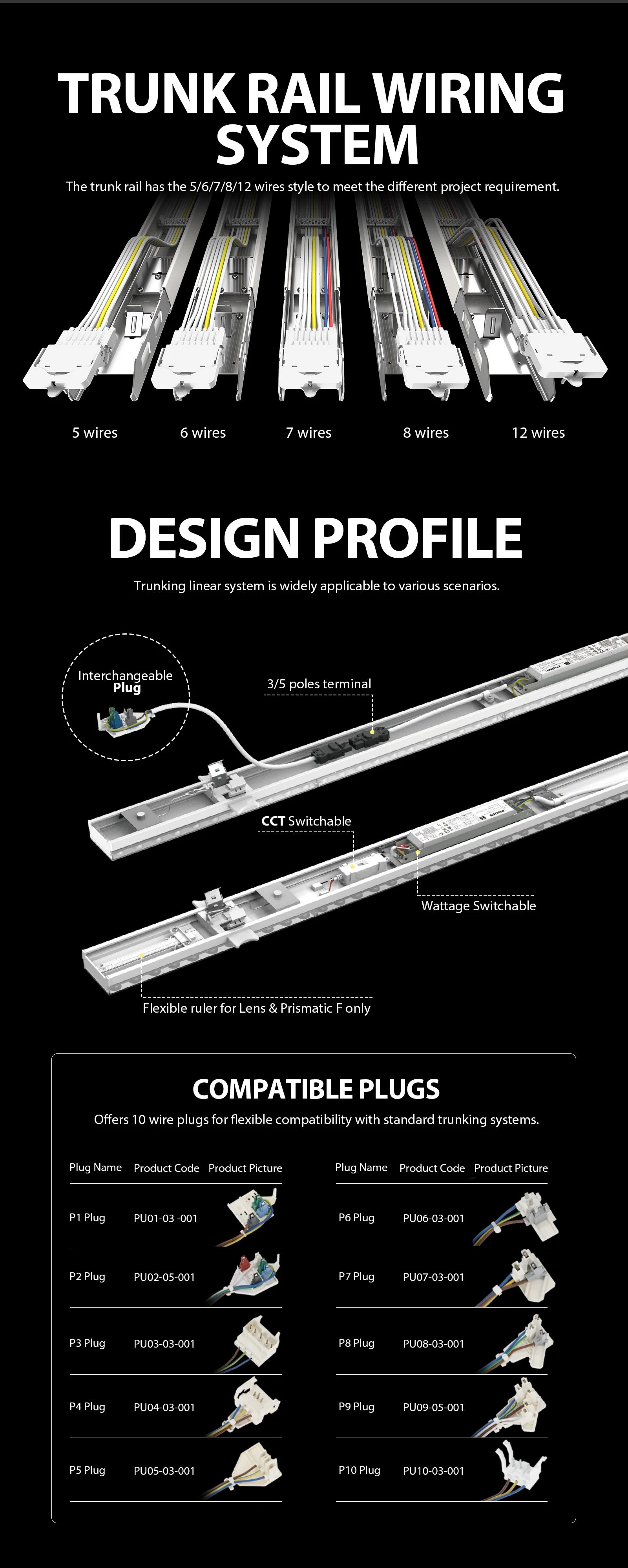

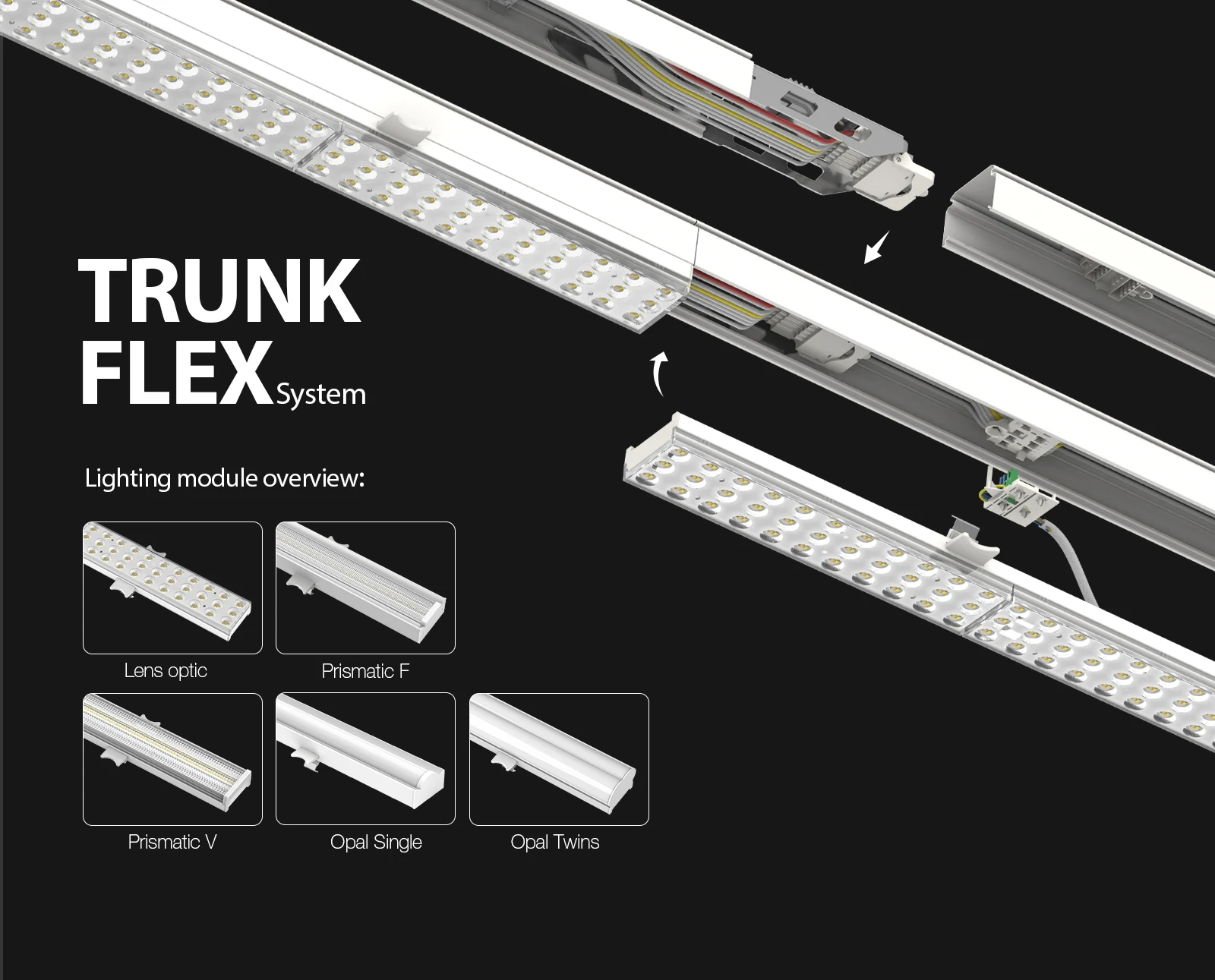

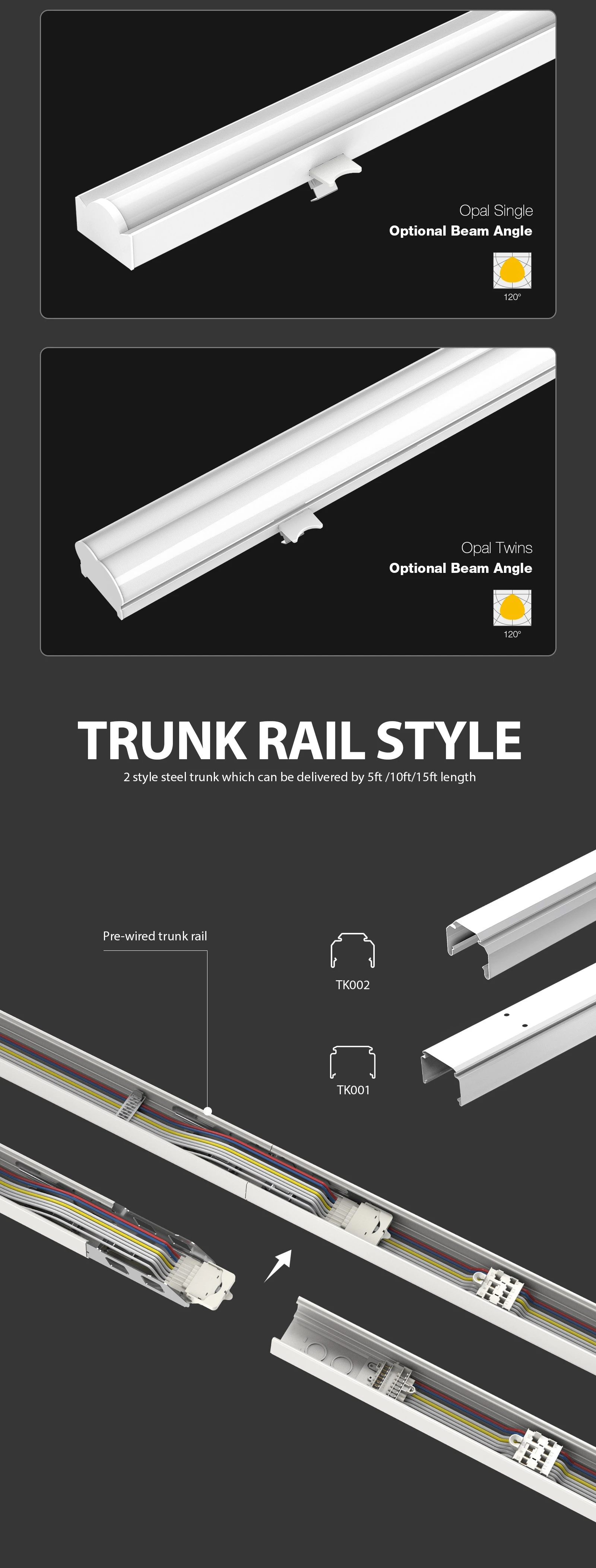

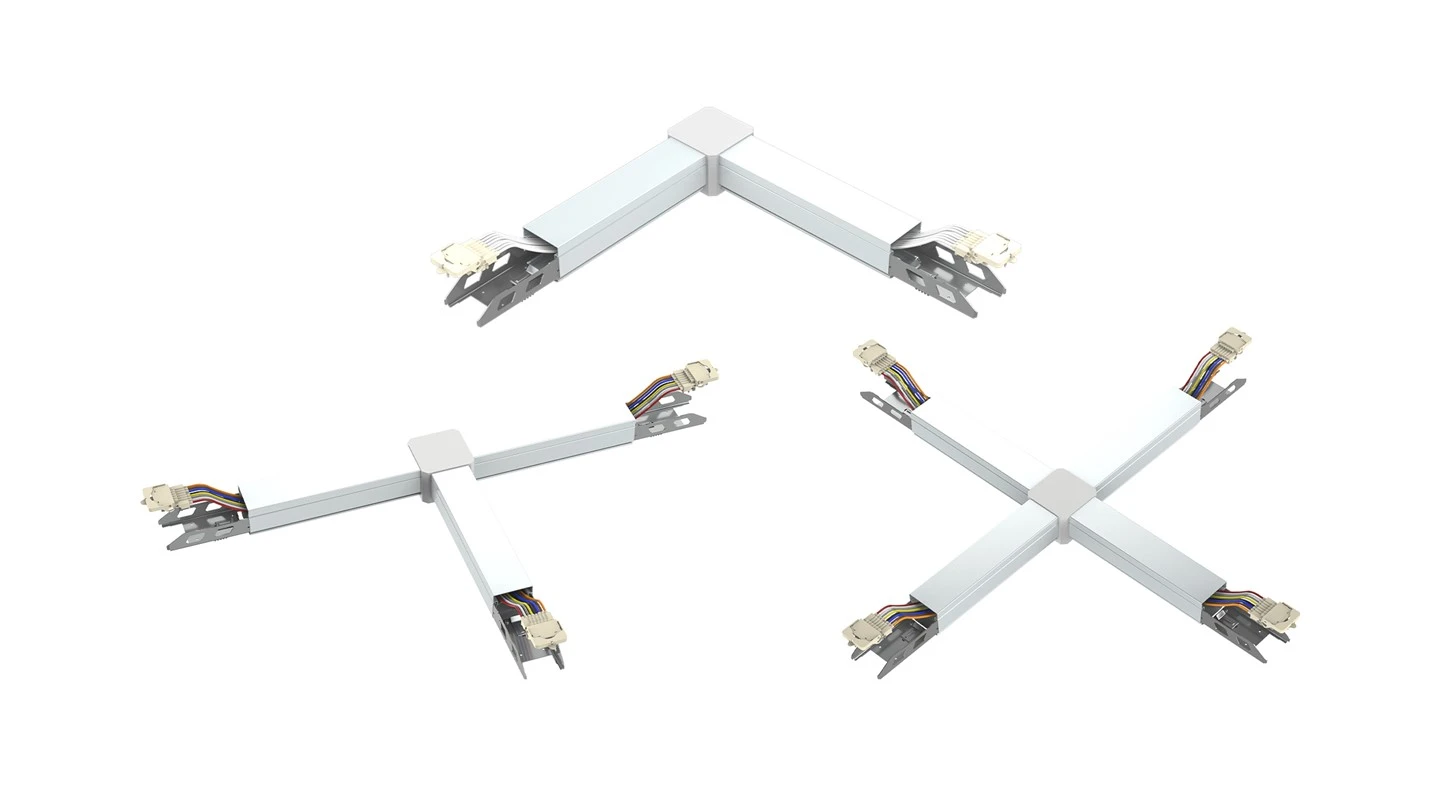

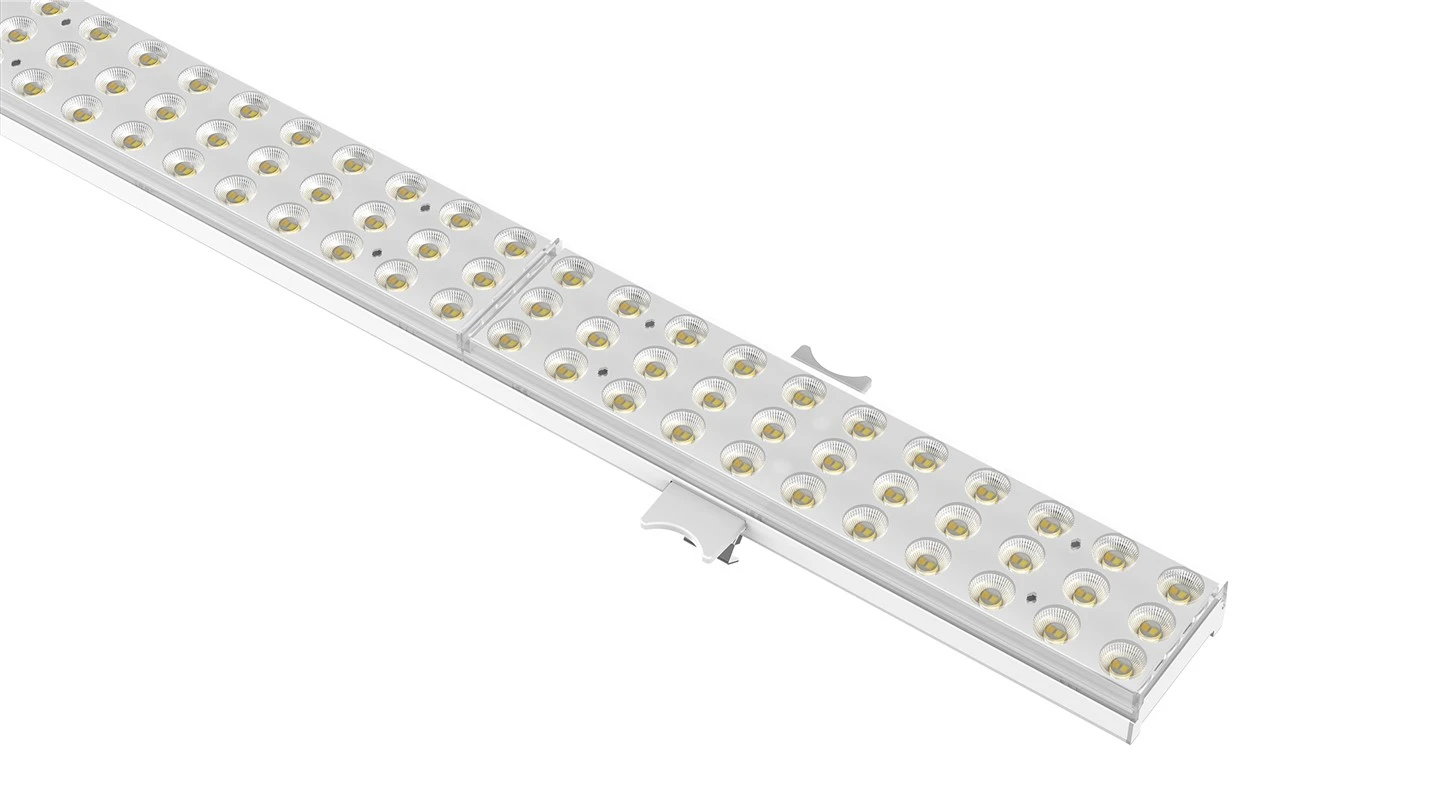

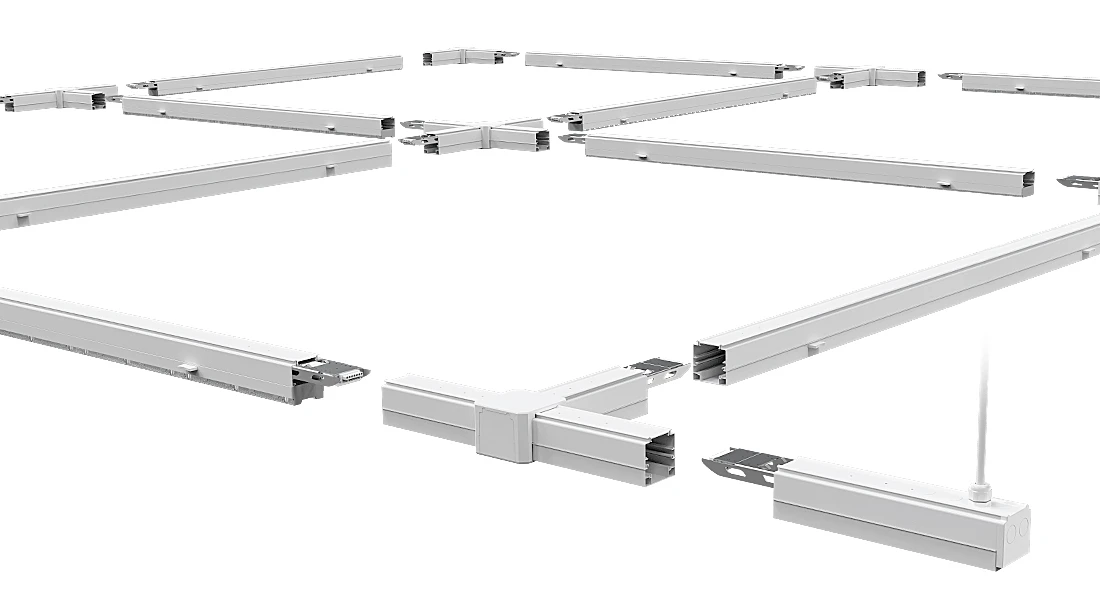

Lub cev Flex muaj cov kab tsheb ciav hlau, cov teeb pom kev zoo thiab cov khoom siv, nrog cov kab teeb ci LED muaj nyob hauv 2-ko taw, 4-ko taw, thiab 6-foot lengths. Lub pre-wired 5/6/7/8/12-wire trunk rail muab AC zog thiab tswj cov teeb liab rau cov teeb pom kev zoo modules.

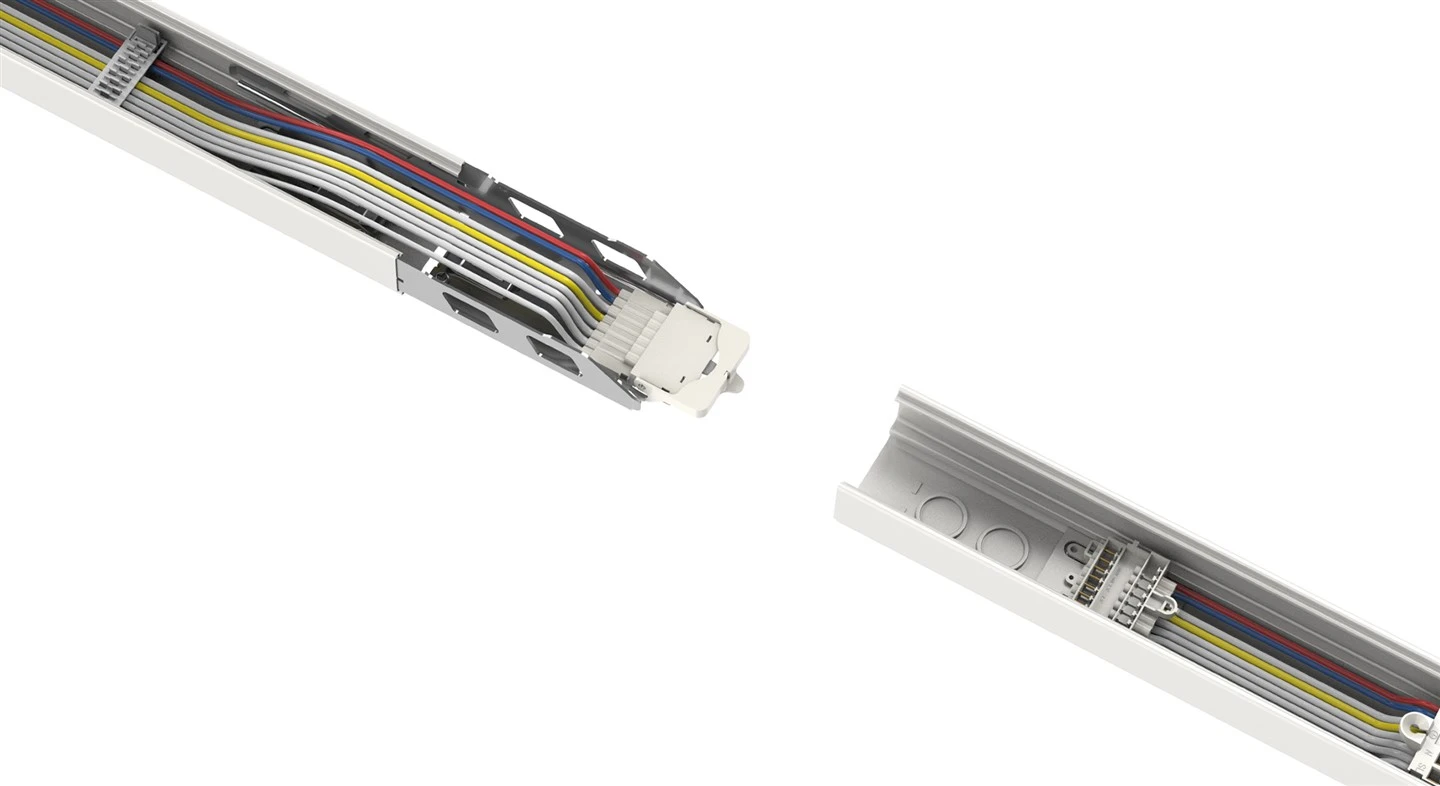

Trunk Flex muaj cov cuab yeej -kev teeb tsa pub dawb txog li 200m multi- txuas, txuag cov nqi teeb tsa tseem ceeb rau ib tus neeg siv khoom. Cov cuab yeej- kev teeb tsa pub dawb yog cuam tshuam rau hauv kev sib txuas ntawm txoj kev tsheb ciav hlau, thawj AC fais fab kev sib txuas rau lub tshuab pib thiab kev teeb tsa yooj yim ntawm lub module.
|
Npog |
Order Code |
Rated zog |
LM/W |
Lumen |
SDCM/Ra |
IP Chav Kawm |
Khoom Dimension |
GW/CTN |
QTY/CTN |
|
Lub lens optic |
LL600-05W-DT1-75F01 |
20-75W |
Typ.180 |
Typ. 4500-13500 |
SDCM<3,<5/ Ra>80,90 |
IP20 |
L1470XW65XH34 |
12.5 kg ib |
6 pcs |
|
Lub lens optic |
LL600-05W-DT1-60F01 |
40-60W |
Typ.180 |
Ib. 7200-10800 |
SDCM<3,<5/ Ra>80,90 |
IP20 |
L1470XW65XH34 |
12.5 kg ib |
6 pcs |
|
Lub lens optic |
LL600-05W-DT1-70V01 |
50-70W |
Typ.180 |
Ib., 9000-12600 |
SDCM<3,<5/ Ra>80,90 |
IP20 |
L1470XW65XH34 |
12.5 kg ib |
6 pcs |
|
Lub lens optic |
LL600-05W-DT1-75D01 |
20-75W |
Typ.180 |
Typ. 4500-13500 |
SDCM<3,<5/ Ra>80,90 |
IP20 |
L1470XW65XH34 |
12.5 kg ib |
6 pcs |
|
Lub lens optic |
LL600-05W-DT1-70D01 |
35-70W |
Typ.180 |
Ib. 6300-12600 |
SDCM<3,<5/ Ra>80,90 |
IP20 |
L1470XW65XH34 |
12.5 kg ib |
6 pcs |
|
Lub lens optic |
LL600-05W-DT1-75F01 |
35-75W |
Typ.180 |
Ib. 6300-13500 |
SDCM<3,<5/ Ra>80,90 |
IP20 |
L1470XW65XH34 |
12.5 kg ib |
6 pcs |
|
Prismatic optic F |
LL630-05W-DT1-75F01 |
20-75W |
Typ.180 |
Typ. 4500-13500 |
SDCM<3,<5/ Ra>80,90 |
IP20 |
L1470XW65XH39 |
12.5 kg ib |
6 pcs |
|
Prismatic optic F |
LL630-05W-DT1-60F01 |
40-60W |
Typ.180 |
Ib. 7200-10800 |
SDCM<3,<5/ Ra>80,90 |
IP20 |
L1470XW65XH39 |
12.5 kg ib |
6 pcs |
|
Prismatic optic F |
LL630-05W-DT1-70V01 |
50-70W |
Typ.180 |
Ib., 9000-12600 |
SDCM<3,<5/ Ra>80,90 |
IP20 |
L1470XW65XH39 |
12.5 kg ib |
6 pcs |
|
Prismatic optic F |
LL630-05W-DT1-75D01 |
20-75W |
Typ.180 |
Typ. 4500-13500 |
SDCM<3,<5/ Ra>80,90 |
IP20 |
L1470XW65XH39 |
12.5 kg ib |
6 pcs |
|
Prismatic optic F |
LL630-05W-DT1-70D01 |
35-70W |
Typ.180 |
Ib. 6300-12600 |
SDCM<3,<5/ Ra>80,90 |
IP20 |
L1470XW65XH39 |
12.5 kg ib |
6 pcs |
|
Prismatic optic F |
LL630-05W-DT1-75F01 |
35-75W |
Typ.180 |
Ib. 6300-13500 |
SDCM<3,<5/ Ra>80,90 |
IP20 |
L1470XW65XH39 |
12.5 kg ib |
6 pcs |
|

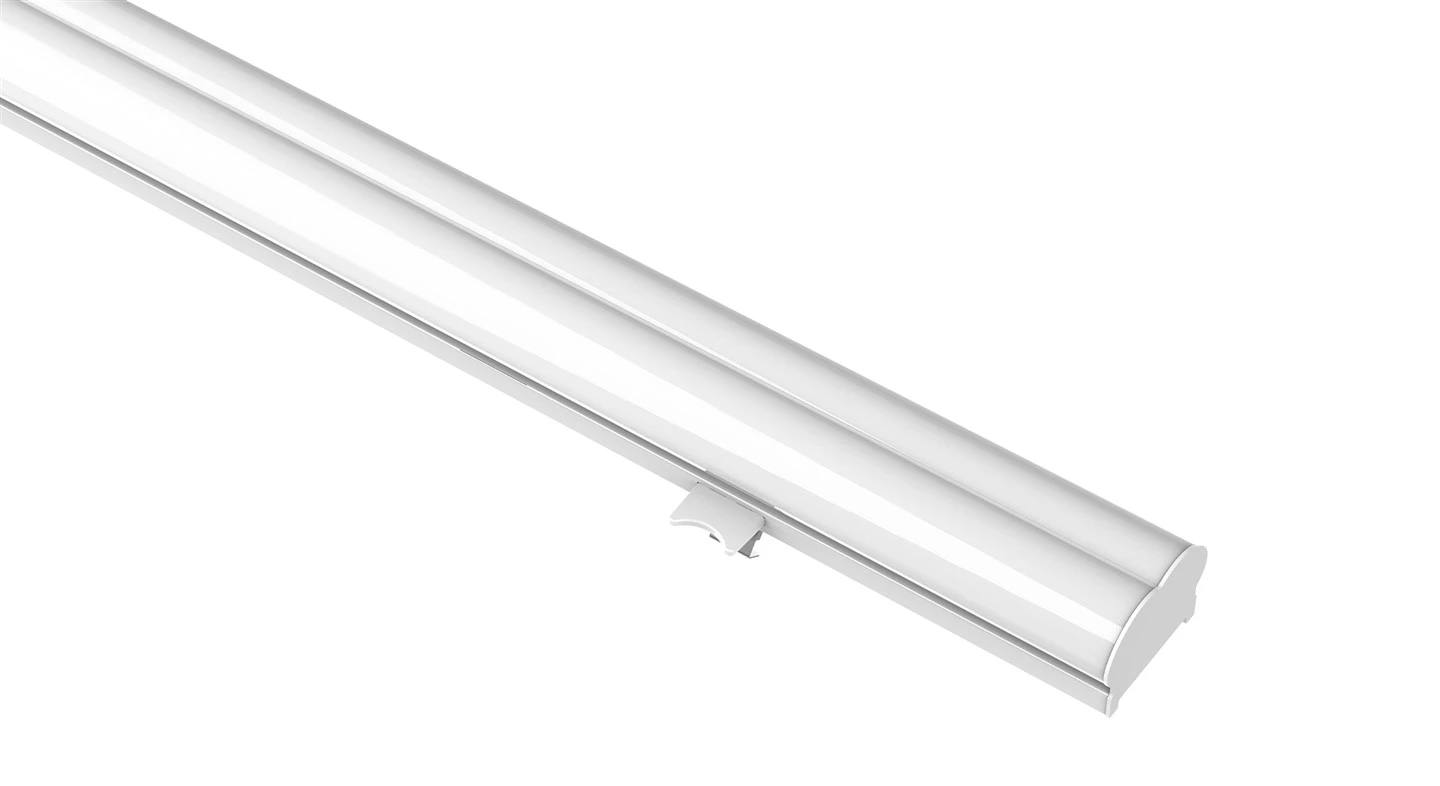

Opal T8 |
LL660-05W-DT1-75F01 |
20-75W |
Typ.160 |
Typ.3200-12000 |
SDCM<3,<5/ Ra>80,90 |
IP20 |
L1470XW65XH36 |
12.5 kg ib |
6 pcs |
|
Opal T8 |
LL660-05W-DT1-60F01 |
40-60W |
Typ.160 |
Ib. 6400-9600 |
SDCM<3,<5/ Ra>80,90 |
IP20 |
L1470XW65XH36 |
12.5 kg ib |
6 pcs |
|
Opal T8 |
LL660-05W-DT1-70V01 |
50-70W |
Typ.160 |
Typ.8000-11200 |
SDCM<3,<5/ Ra>80,90 |
IP20 |
L1470XW65XH36 |
12.5 kg ib |
6 pcs |
|
Opal T8 |
LL660-05W-DT1-75D01 |
20-75W |
Typ.160 |
Typ.3200-12000 |
SDCM<3,<5/ Ra>80,90 |
IP20 |
L1470XW65XH36 |
12.5 kg ib |
6 pcs |
|
Opal T8 |
LL660-05W-DT1-70D01 |
35-70W |
Typ.160 |
Typ.5600-11200 |
SDCM<3,<5/ Ra>80,90 |
IP20 |
L1470XW65XH36 |
12.5 kg ib |
6 pcs |
|
Opal T8 |
LL660-05W-DT1-75F01 |
35-75W |
Typ.160 |
Typ.5600-12000 |
SDCM<3,<5/ Ra>80,90 |
IP20 |
L1470XW65XH36 |
12.5 kg ib |
6 pcs |
