QHIA:

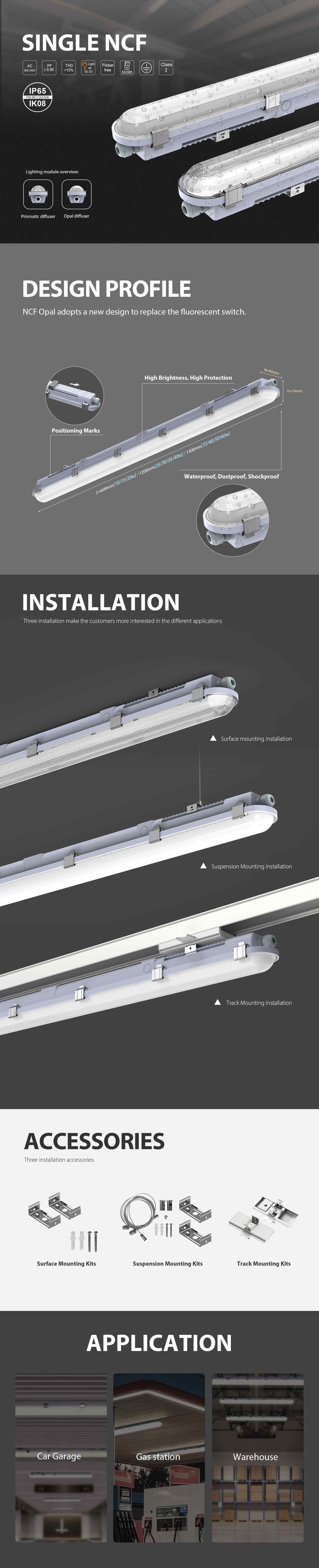

Ib leeg NCF txais kev tsim qauv tshiab los hloov cov fluorescent thaj. Nyob rau hauv cov nqe lus ntawm kev ua tau zoo, nws tau mus txog IP65 ntsuam xyuas thiab muaj kev cuam tshuam siab IK08, thiab muaj cov haujlwm yooj yim xws li dej tsis qab, plua plav, tsis muaj zog, siab ci, thiab kev tiv thaiv siab. Tsis tas li ntawd xwb, lub teeb no muaj qhov tshwj xeeb, ceev, thiab yooj yim installation tsim, uas tuaj yeem txuag cov nqi zog.
|
Order Code |
Rated zog |
LM/W |
Lumen |
SDCM/Ra |
IP Chav Kawm |
Khoom Dimension |
GW/CTN |
QTY/CTN |
|
|
Opal diffuser |
TR550-02G-RT1-20F22-00 |
10-15-20W |
ib. 150 |
typ.1500-2250-3000 |
<5 / Ra80 |
IP65 |
L600*W82*H74 |
6, 2kg |
6 pcs |
|
TR550-04G-RT1-40F22-00 |
25-30-35-40W |
ib. 150 |
typ.3750-4500-5250-6000 |
<5 / Ra80 |
IP65 |
L1200*W82*H74 |
11.2 kg ib |
6 pcs |
|
|
TR550-05G-RT1-60F22-00 |
35-40-50-60W |
ib. 150 |
typ.5250-6000-7500-9000 |
<5 / Ra80 |
IP65 |
L1500*W82*H74 |
14.2 kg ib |
6 pcs |
|
|
Prismatic diffuser |
TR551-02G-RT1-20F22-00 |
10-15-20W |
ib. 170 |
1700-2550-3400 ib |
<5 / Ra80 |
IP65 |
L600*W82*H74 |
6, 2kg |
6 pcs |
|
TR551-04G-RT1-40F22-00 |
25-30-35-40W |
ib. 170 |
4250-5100-5950-6800 ib |
<5 / Ra80 |
IP65 |
L1200*W82*H74 |
11.2 kg ib |
6 pcs |
|
|
TR551-05G-RT1-60F22-00 |
35-40-50-60W |
ib. 170 |
ib. 5950-6800-8500-10200 |
<5 / Ra80 |
IP65 |
L1500*W82*H74 |
14.2 kg ib |
6 pcs |
