QHIA:

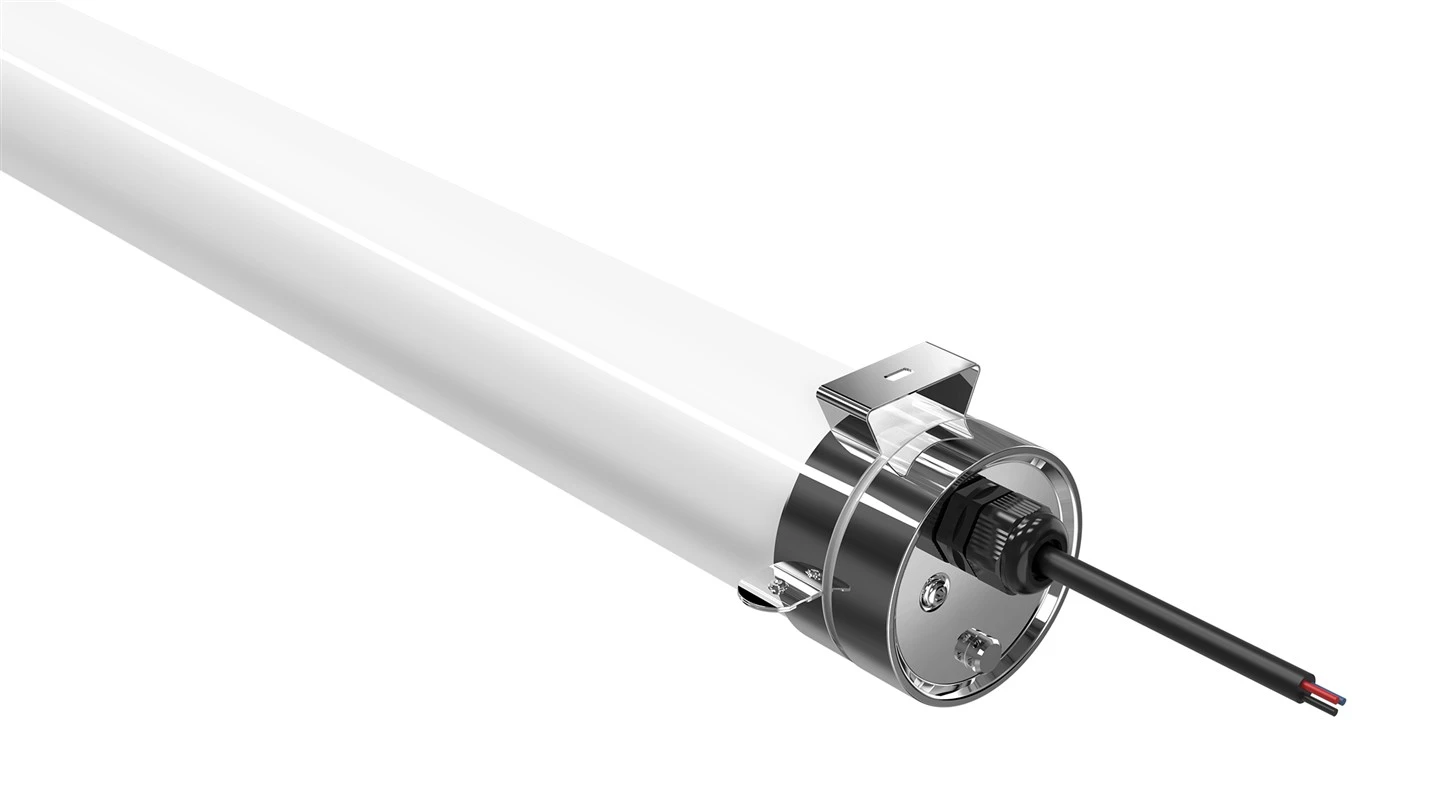

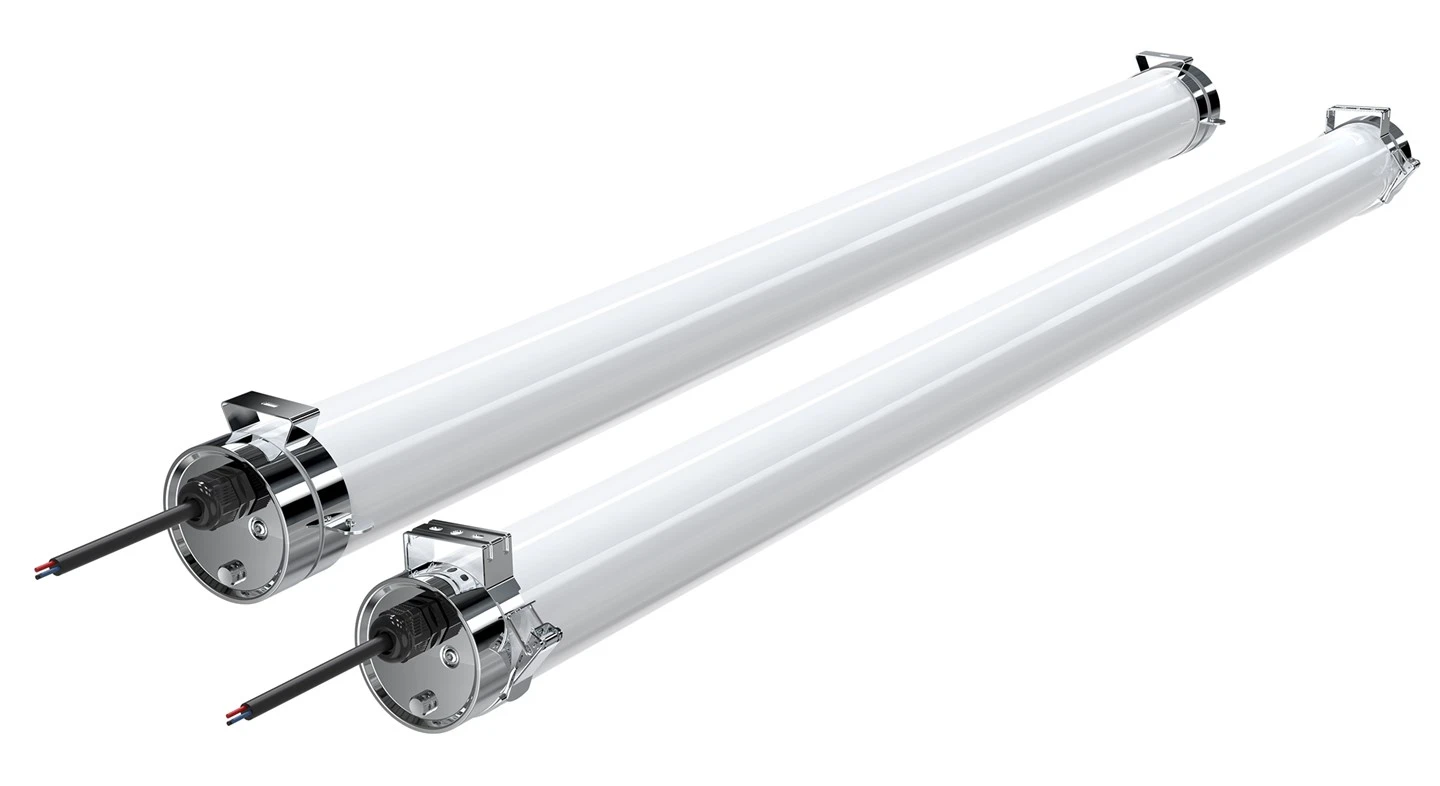

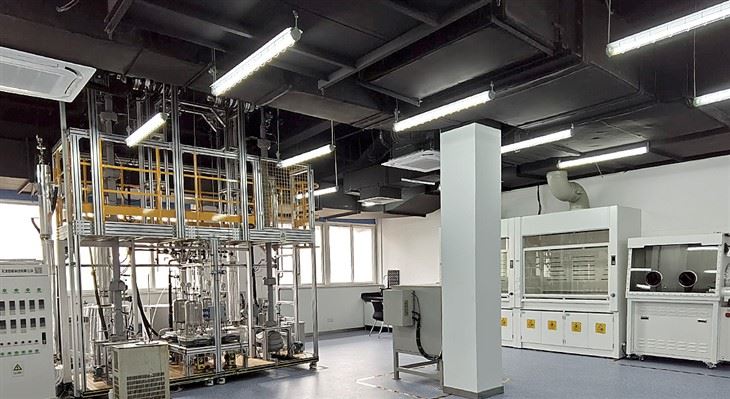

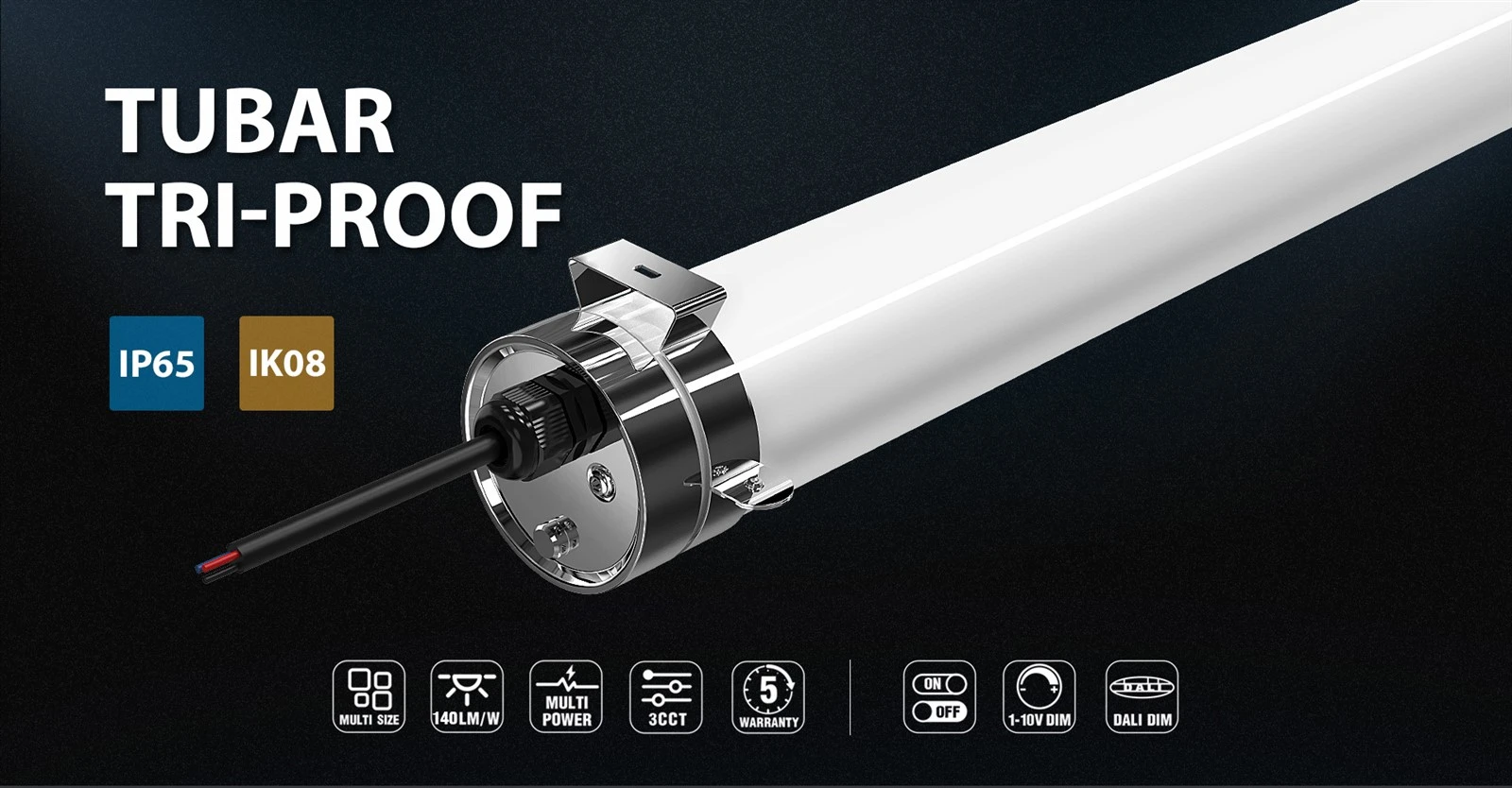

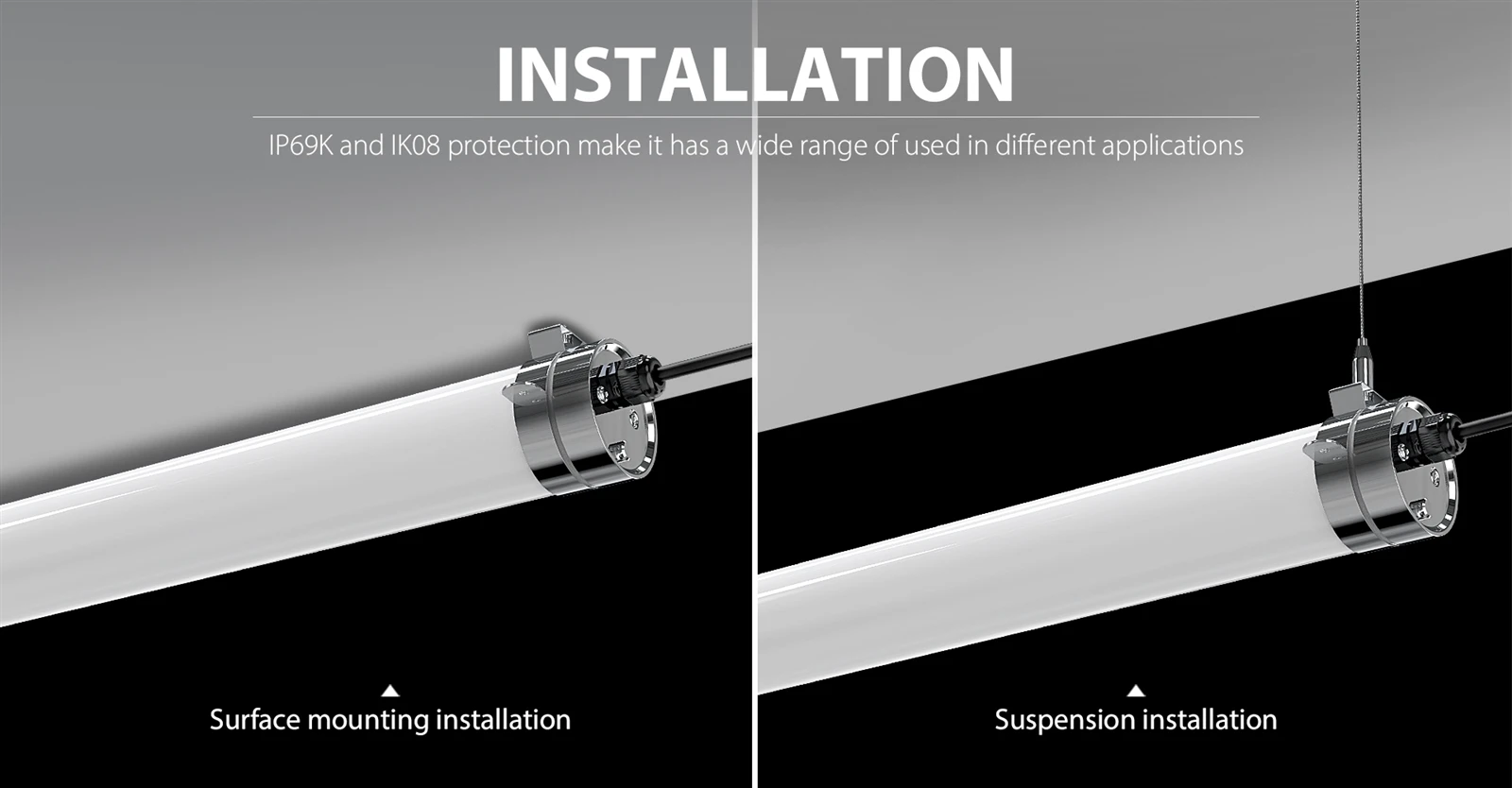

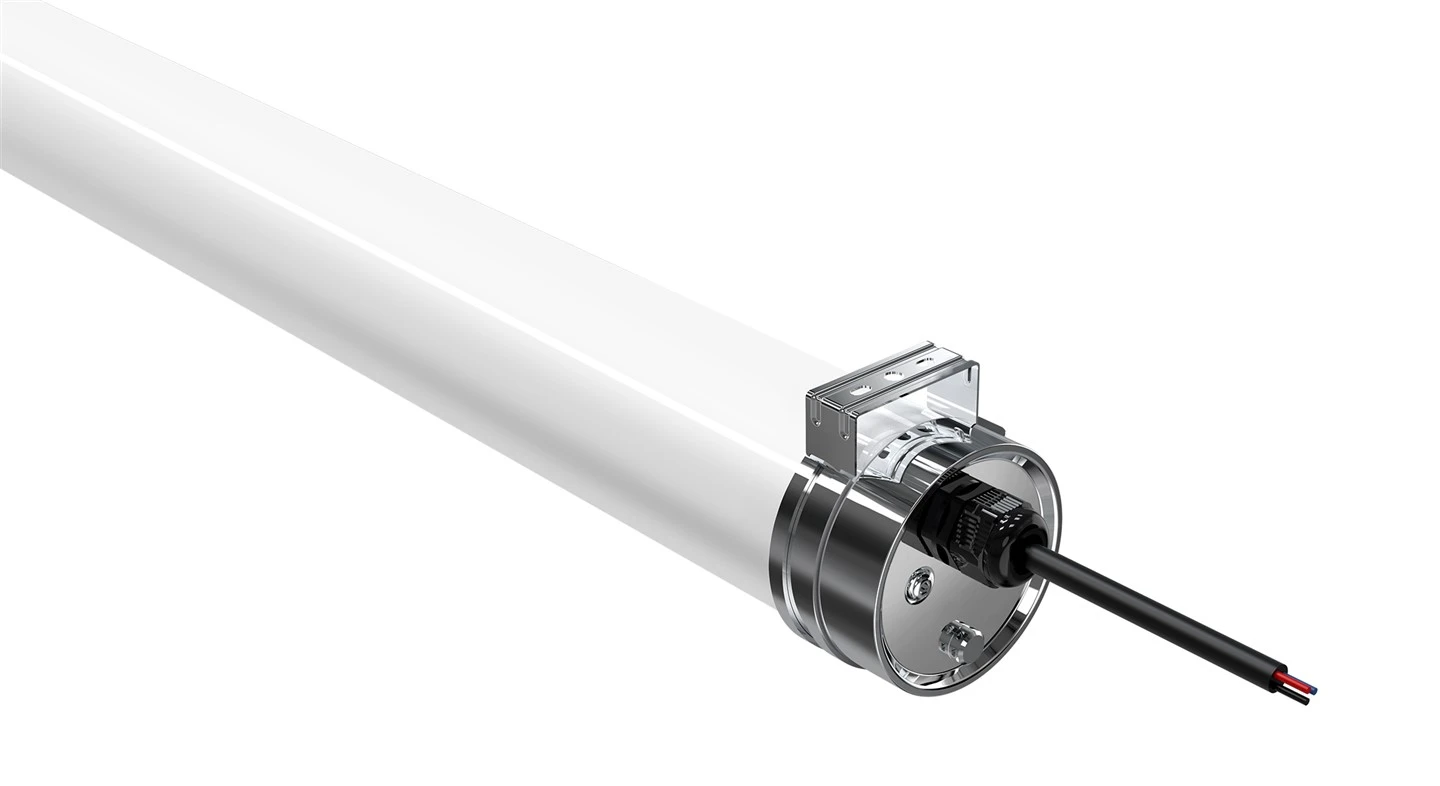

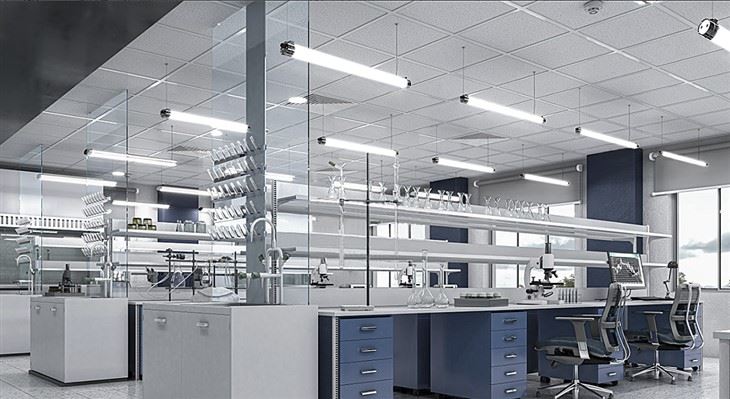

Tubar tri- pov thawj (PC) yog ib qho kev daws teeb meem zoo tshaj plaws rau kev siv tshuaj xws li tshuaj ntxuav tsheb, ntxuav tsheb, ua zaub mov thiab nqaij qaib teeb pom kev zoo, vim lub PC vaj tse yog UV resistant thiab muaj qhov ntsuas IP65 IK08. Nws tuaj yeem tiv taus dej siab thiab kub siab. Lub siab -tech SMD2835 muab lumen tso zis ntau dua. Nws los nrog 5- xyoo warranty nyob rau hauv cov nqe lus ntawm kev ruaj ntseg zoo, thiab nws yog ib tug heev ruaj cov khoom, xws li huab cua tsis kam, yellowing kuj, thiab aging kuj. Nws los nrog tsib xyoos lav thiab tuaj yeem ntsia tau tus kheej lossis hauv cov saw hlau. Nws yog tsim rau kev ua liaj ua teb, zaub mov thiab nqaij ua cov nroj tsuag.
|
Order Code |

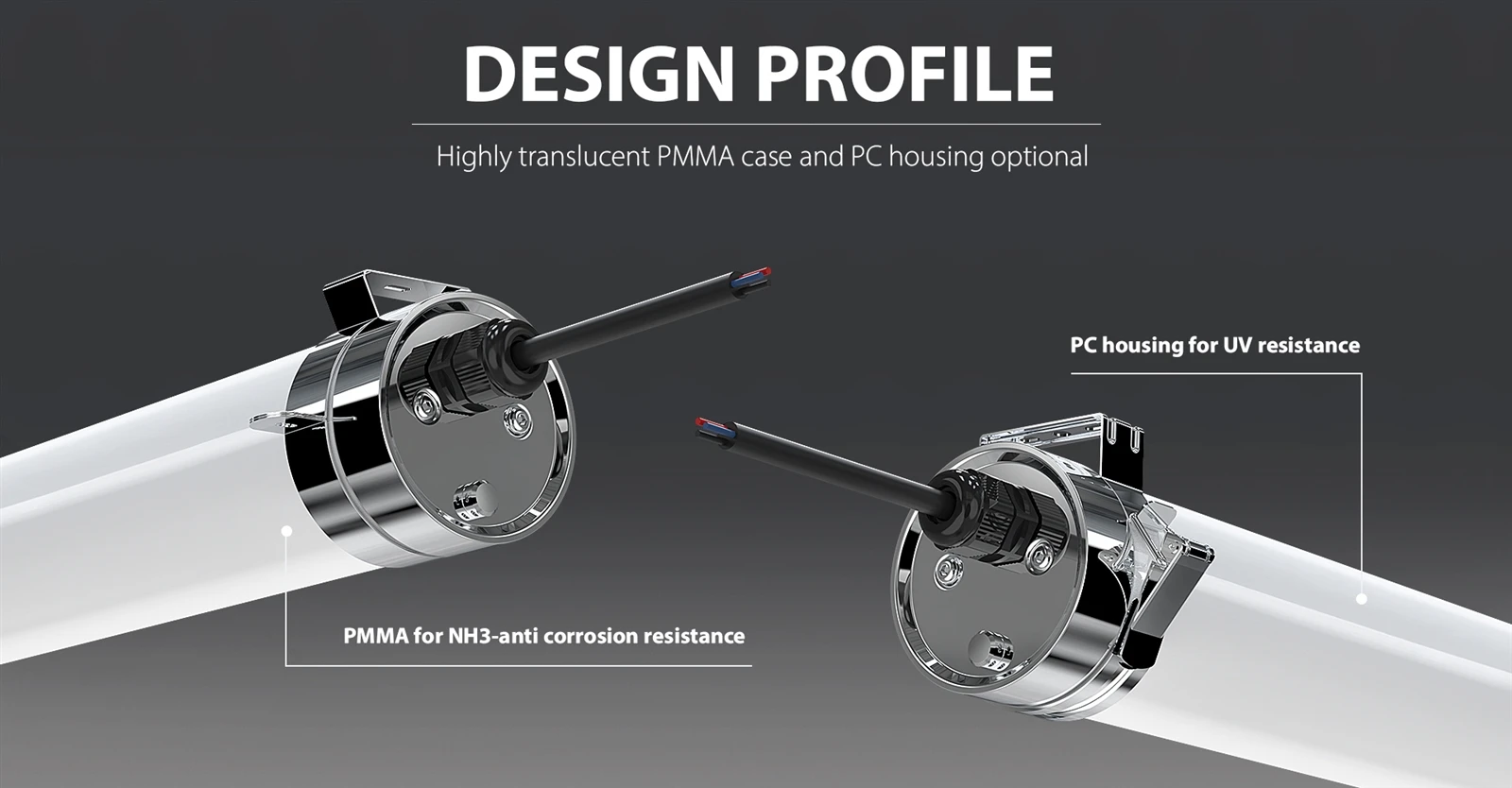

Diffuser |
Rated zog |
LM/W |
Lumen |
SDCM/Ra |
IP Chav Kawm |

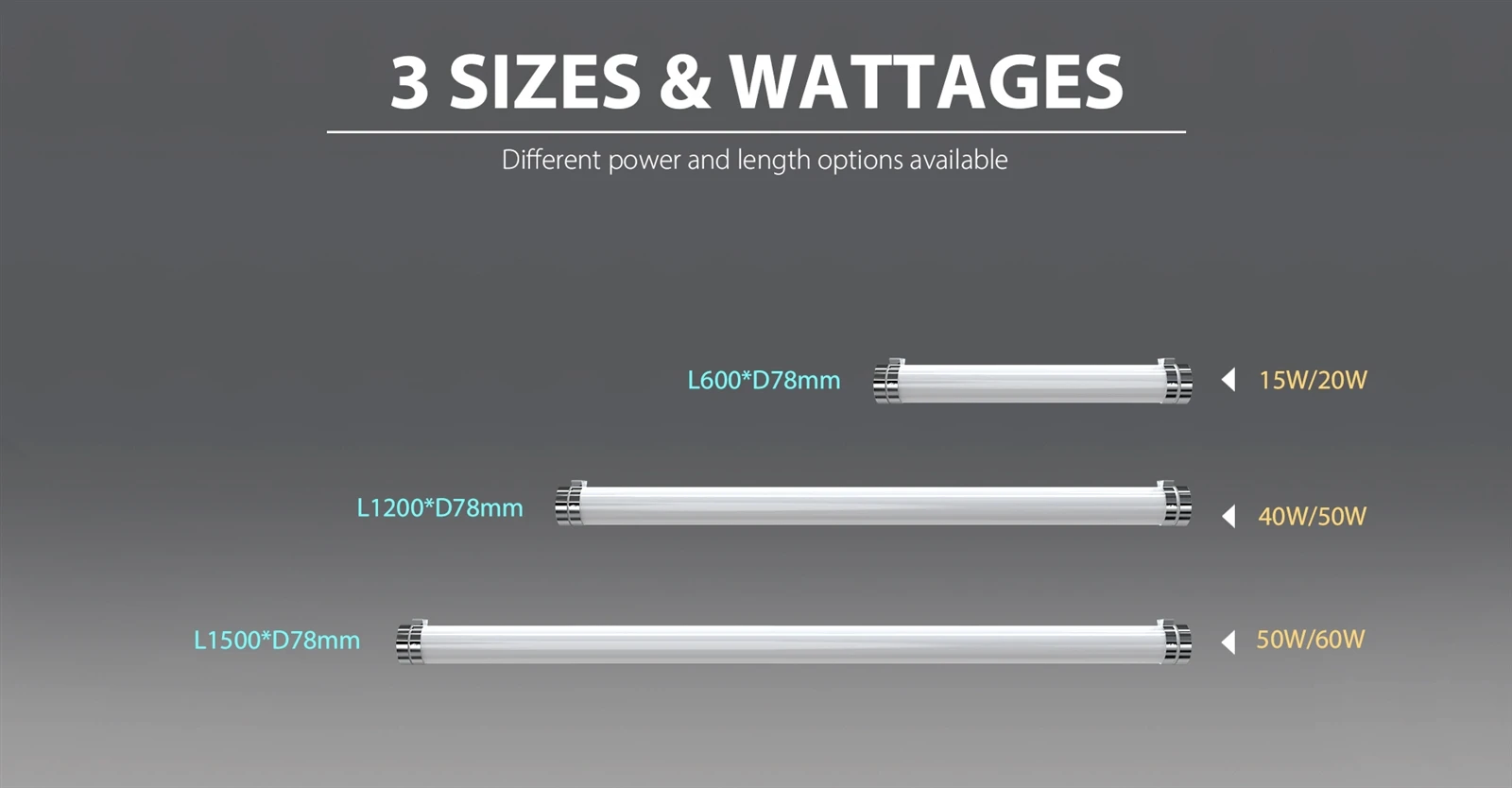

Khoom Dimension (MM) |
GW/CTN |
QTY/CTN |
|
TR400-02W-DN1-20F01-00 |
PMMA |
10/20W |
ib. 140 |
ib. 2100/2800 |
<3 / Ra80/90 |
IP65 |
L600*D78 |
7 ,8kg |
4pcs ib |
|
TR400-04W-DN1-50F01-00 |
PMMA |
40/50W |
ib. 140 |
typ.5600/7000 |
<3 / Ra80/90 |
IP65 |
L1200*D78 |
12.5 kg ib |
4pcs ib |
|
TR400-05W-DN1-60F01-00 |
PMMA |
50/60W |
ib. 140 |
ib. 7000/8400 |
<3 / Ra80/90 |
IP65 |
L1500*D78 |
14.5 kg ib |
4pcs ib |
|
TR410-02W-DN1-20F01-00 |
PC |
10/20W |
ib. 140 |
ib. 2100/2800 |
<3 / Ra80/90 |
IP65 |
L600*D78 |
7 ,8kg |
4pcs ib |
|
TR410-04W-DN1-50F01-00 |
PC |
40/50W |
ib. 140 |
typ.5600/7000 |
<3 / Ra80/90 |
IP65 |
L1200*D78 |
12.5 kg ib |
4pcs ib |
|
TR410-05W-DN1-60F01-00 |
PC |
50/60W |
ib. 140 |
ib. 7000/8400 |
<3 / Ra80/90 |
IP65 |
L1500*D78 |
14.5 kg ib |
4pcs ib |
